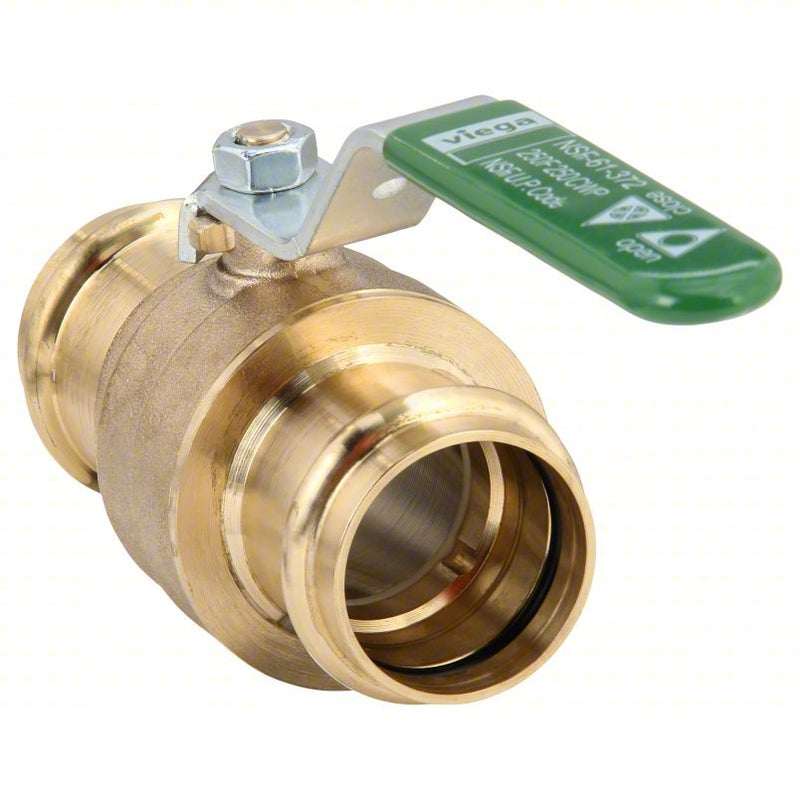

Viega 79935 Ball Valve 1 1/4 in Pipe, Full, 200 psi CWP, 0° to 250°F, Locking Lever Handle, PTFE - KVM Tools Inc.KV20XW49

Viega 79935 Ball Valve 1 1/4 in Pipe, Full, 200 psi CWP, 0° to 250°F, Locking Lever Handle, PTFE

UPC: 691514799353 | Harmonization / Schedule B : 8481.80.1085

Country of Origin: | Shipping Weight:

$155.31 - $155.31
$155.31
$155.31 - $155.31
$155.31
Ball Valve, Body Material Zero Lead Bronze, Body Style Inline, 2-Piece, Pipe Size 1 1/4 in, Tube Size 1 1/4 in x 1 1/4 in, Connection Type Press x Press, Full Port, Max. Pressure 200 psi CWP, Max. Steam Pressure 15 psi WSP, Temp. Range 0 Degrees to 250 Degrees F, Ball Material Stainless Steel, Seat Material PTFE, Stem Type Blowout Proof, Handle Type Locking Lever, Handle Material Zinc Plated Steel with Vinyl Grip, Stem Material Lead Free Brass, Body Seal Material EPDM
Body Material Lead-Free Bronze
Body Style Inline
Standards 13D and 13R: Fire Sprinkler Applications, CRN: Canadian Registration Number, CSA International: Canadian Standards Association, FM: FM Global, IAPMO: Uniform Plumbing Code, ICC: International Plumbing Code, NFPA 13, NSF/ANSI 372: Drinking Water System Components - Lead Content, NSF/ANSI 61: Drinking Water System Components - Health Effects, PHCC: National Standard Plumbing Code, UL: Underwriters Laboratories
Temp. Range 0 Degrees to 250 Degrees F
Features Smart Connect, Zero Lead
Seat Material PTFE
Stem Material Lead Free Brass
Ball Valve Product Group Manual
Max. Pressure 200 psi CWP
Handle Material Zinc Plated Steel with Vinyl Grip
Item Ball Valve
Connection Type Press x Press
Body Seal Material EPDM
Valve Structure 2-Piece
Compliance ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Ball Material Stainless Steel
Stem Type Blowout Proof
Port Full
Max. Steam Pressure 15 psi WSP
Handle Type Locking Lever
Ball Valve Basic Body Material Bronze
General Connection Type Press
Sub-Category Bronze Ball Valves
