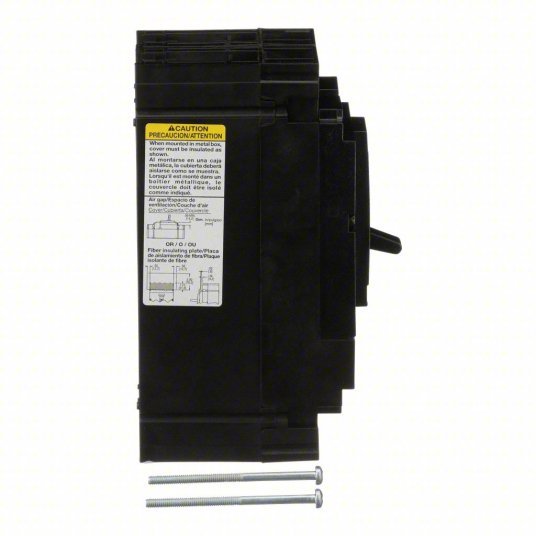

Square D HDL26040 Molded Case Circuit Breaker 40A, 25kA at 240V AC, Fixed, Line/Load Lug, 2 Poles, 600V AC, HD - KVM Tools Inc.KV1MAJ9

Square D HDL26040 Molded Case Circuit Breaker 40A, 25kA at 240V AC, Fixed, Line/Load Lug, 2 Poles, 600V AC, HD

UPC: 785901706533 | Harmonization / Schedule B : 8536.20.0020

Country of Origin: | Shipping Weight:

$1,052.44 - $1,052.44
$1,052.44
$1,052.44 - $1,052.44
$1,052.44
Molded Case Circuit Breaker, 40 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 25kA at 240V AC, For Use With -, Series HD, High Amp Trip Setting 850 A, Low Amp Trip Setting 400 A, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating 250V DC, Terminal Connection Line/Load Lug, Trip Type Thermal Magnetic, Phase Single, Instantaneous Trip Fixed, Phase Connection Not Applicable, Frame Size 150A/HD, Circuit Breaker Mounting Style Free Standing, Height 6.4 in, Width 2.74 in
Series HD
Amps 40A
Number of Poles 2
AC Voltage Rating 600V AC
Circuit Breaker Type Standard
Phase 1
Circuit Breaker Actuator Toggle
Circuit Breaker Mounting Style Free Standing
Max. AIR Rating 25kA at 240V AC
Trip Type Thermal Magnetic
Instantaneous Trip Fixed
Terminal Connection Line/Load Lug
Phase Connection Not Applicable
DC Voltage Rating 250V DC
Standards CE, CSA, IEC, UL Listed
Low Amp Trip Setting 400 A
High Amp Trip Setting 850 A
Interrupt Rating 25 kA at 220/240V AC, 18 kA at 380/440/415/480V AC, 14 kA at 500/525/600V AC, 20 kA at 250/500V DC
Application HACR rated Applications; Distribution
Features Mercury Free; PVC Free
Color Black
Max. Operating Temp. 104 Degrees F
