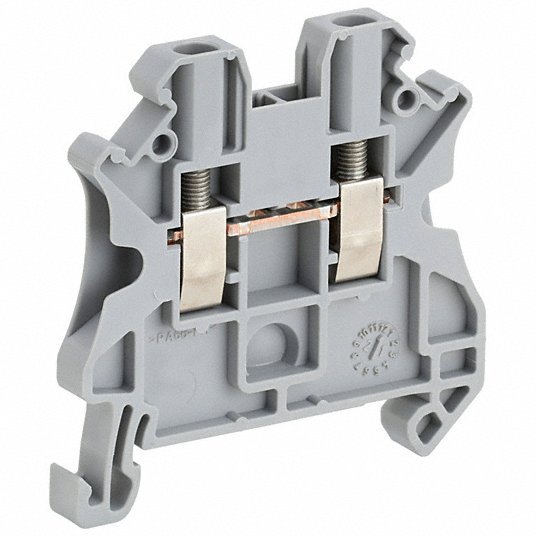

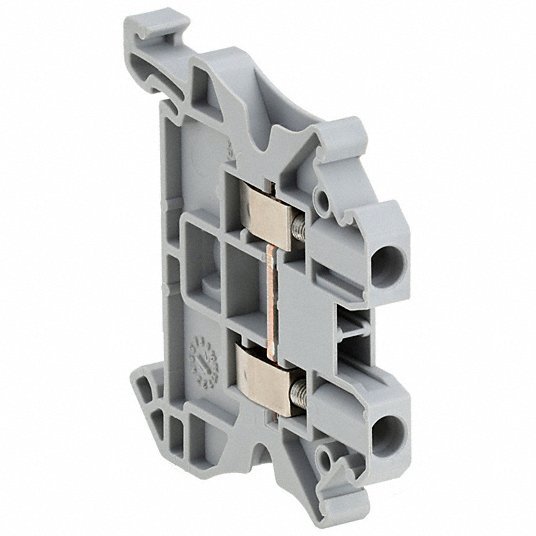

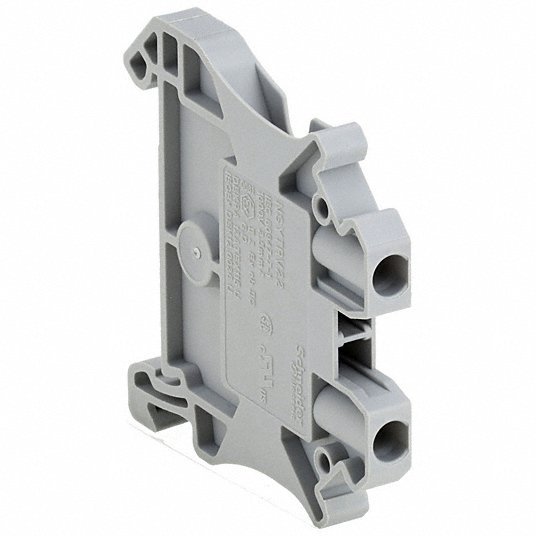

Schneider NSYTRV22 Terminal Block Screw Clamp, 20 A Current, Pass-Through, Gray
UPC: 785901860518 | Harmonization (Schedule B): 8536.90.4000
SKU KV23NY07
Original price
$2.25
-
Original price
$2.25
Original price
$2.25
$2.25
-
$2.25
Current price
$2.25
Terminal Block, Circuit Protection Type None, Connection Type Screw Clamp, Current 20 A, For Minimum Wire Size 26 AWG, For Maximum Wire Size 12 AWG, Housing Color Gray, Maximum Voltage 1,000 V AC, Mounting Type DIN, Number of Poles 1, Number of Tiers 2, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 1.88 in, Overall Length 1.88 in, Overall Width 0.2 in, Standards ATEX, CSA, DNV, EAC, GL, IECEx, LR, UL, VDE, Terminal Block Type Pass-Through
Item | Terminal Block |
Amps | 20 A |
Voltage | 600V AC |
Number of Poles | 1 |
Number of Connections | 2 |
Terminal Type | Pass-Through |
Color | Gray |
Block Material | Polyamide 6/6 |
Mounting Type | DIN |
6-Pole Jumpers | No. Modelo NSYTRAL25 |
Temp. Range | -76 Degrees to 266 Degrees F |
Standards | ATEX, CSA, DNV, EAC, GL, IECEx, LR, UL, VDE |
2-Pole Jumpers | NSYTRAL22 |
Connection Type | Screw Clamp |
Pieces per Foot | 57 |
End Barrier | NSYTRAP22 |
Material | polyamide 6/6 insulating case || copper alloy connector and screw || copper alloy commoning link || chromium-nickel steel spring |
2-Pole Jumper Compatibility | NSYTRAL22 |
Circuit Protection Type | None |
6-Pole Jumper Compatibility | Mfr. No. NSYTRAL25 |
Terminal Block Type | Pass-Through |
Housing Color | Gray |
Maximum Voltage | 1,000 V AC |
Housing Material | Polyamide 6/6 |
Minimum Operating Temperature | -40 Degrees F |
RoHS Compliant | Yes |
End Barrier Compatibility | NSYTRAC22 |
Torque | 5 lb-in |
Termination Style | Screw |
Current | 20 A |
For Conductor Type | Solid, Stranded |
For Conductor Material | Copper |
UL 94 Flammability Rating | V-0 |
Maximum Operating Temperature | 266 Degrees F |
Compatible Manufacturer Model Number | NSYSDR200BD, NSYTRAAB35, NSYTRAABV35, NSYTRAATM1, NSYTRAATP1, NSYTRAC22, NSYTRAC22BL, NSYTRACS2, NSYTRAFT, NSYTRAL210, NSYTRAL210BL, NSYTRAL210GR, NSYTRAL22, NSYTRAL220, NSYTRAL23, NSYTRAL24, NSYTRAL25, NSYTRAP22, NSYTRAP22BL, NSYTRASB4 |
Number of Tiers | 2 |
Terminal Material | Copper |
[Ue] Rated Operational Voltage | 1000 V EN/IEC 60947-7-1 || 600 V CSA || 690 V ATEX Exe II Ex II 2 GD || 600 V cURus |
Mounting Mode | clip-on |
Product Compatibility | Spacial enclosures |
Device Short Name | TRV |
Connections - Terminals | 1 x screw terminal upstream M3) || 1 x screw terminal downstream M3) |
Number Of Terminals | 2 |
Surface Resistance | 1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30 |
Dielectric Loss | 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4 |
Number Of Measurement Input | 2 |
Accessory / Separate Part Category | connection accessory |
Dielectric Strength | 1000 V IEC 60243-1 |
Resistivity | 10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30 |
Connection Position | sideways |
Tightening Torque | 0.5-0.6 N.m |
Tool Type | connection screwdriver || disconnection screwdriver |
Product Name | Linergy TR |
Range | Linergy |
Flame Retardance | V0 0.8 mm UL 94 |
Nominal Cross Section | 2.5 mm² |
Range Compatibility | Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys || Thalassa Thalassa TBP || Thalassa Thalassa TBS |
Cable Cross Section | 0.14-4 mm², solid with cable end || 0.2-2.5 mm², flexible with cable end || 0.14-4 mm², solid without cable end || 0.14-4 mm², flexible without cable end |
Product Certifications | LR || EAC || VDE || cURus || DNV || CSA || IEC-Ex || ATEX || GL |
Creep Resistance | 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30 |
Line Rated Current | 24-24 A EN/IEC 60947-7-1 || 22-22 A ATEX Exe II Ex II 2 GD || 20-20 A cURus || 20-20 A CSA |
Product Or Component Type | terminal block |
Terminal Block Level | 1 |
Dielectric Constant | 3.7 at 1 MHz |
Ambient Air Temperature For Operation | -40-130°C IEC 60216-1 || -40-130°C VDE 0304-T21 |
Package Quantity | 1 |
