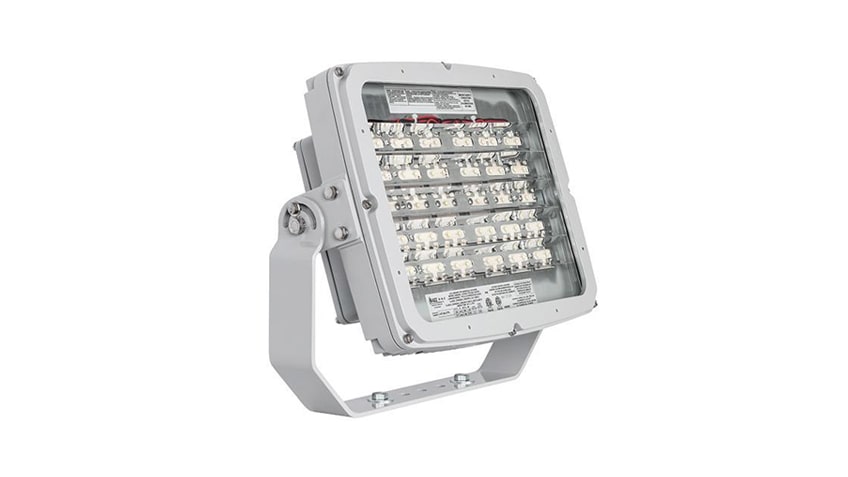

Rig-A-Lite LHFL20LUTP76 CIDII, CIIDI & DII Flood LED Lighting for Hazardous Location

Name: Rig-A-Lite LHFL20LUTP76 CIDII, CIIDI & DII Flood LED Lighting for Hazardous Location
Brand: Rig-A-Lite
SKU: LHFL20LUTP76
Price: 2719.72 USD
Availability: InStock

UPC: | Harmonization / Schedule B : 9405.11.4020

Country of Origin: | Shipping Weight:

$2,719.72 - $2,719.72

$2,719.72

$2,719.72 - $2,719.72

$2,719.72

Quantity

The Rig-A-Lite LHFL20LUTP76 CIDII, CIIDI & DII Flood is designed for maximum lighting efficiency in hazardous environments. With its advanced technology, this floodlight provides superior lighting while ensuring safety and compliance with CIDII, CIIDI, and DII standards. Illuminate your workspace with confidence and precision. LHFL-20-L-U-T-76

Watts	164
Operating Voltage	120V – 277 V 50/60 Hz
Total Lumens	20,239
Lumens per Watt	124
CRI	72
CCT	5,046
Ambient Temperature	-40°C < Tamb <65°C

Standard Features:

High-performance precision optics system
Field-replaceable LED circuit boards and drivers with quick disconnects
Approved for high-ambient applications, up to 65° C
Two permanent safety cable retention points
Terminal block

Additional Features:

Supplemental 10kV surge protection
Dual hub entries, feed-through capable
Optional polycarbonate lens
Terminal block
5-year warranty

Classifications:

Class I, Division 2, Groups A, B, C and D Class II, Divisions 1 and 2, Groups E, F and G
Class III
Zone 2, Groups IIA, IIB and IIC
UL 844 hazardous locations
UL 1598A marine outside type
UL 1598 wet locations
UL 8750 LED safety
65°C ambient temperature (Class I, Division 2)
55°C ambient temperature (Class II & III)
CAN/CSA C22.2 No. 250.0-08
CAN/CSA C22.2 No. 137-M1981
LM79 and LM80
ABS type approved
IP66
NEMA 4X
DLC Listed LED

Standard Materials:

Body: A360 aluminum (less than .4% copper content) with baked-on gray epoxy finish
Gaskets: silicone
Lens: tempered glass
Hardware: stainless steel
