PIC 201L-204E Pressure Gauge, 0 to 100 psi, 1/4 in MNPT, Stainless Steel, Silver - KVM Tools Inc.KV19RZ17

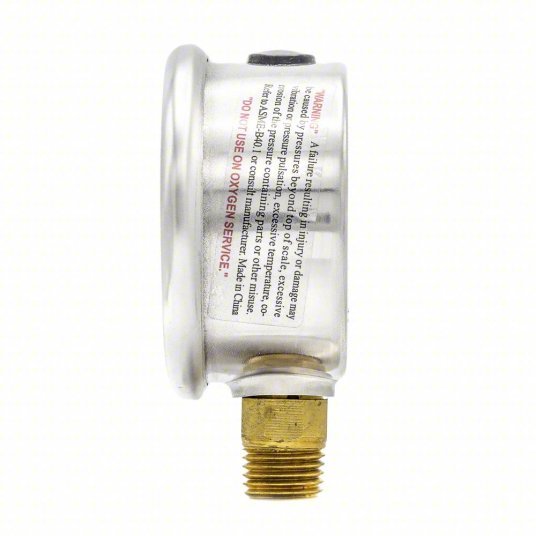

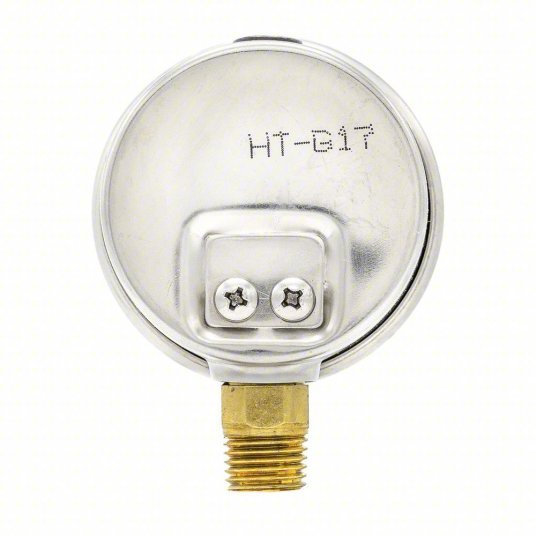

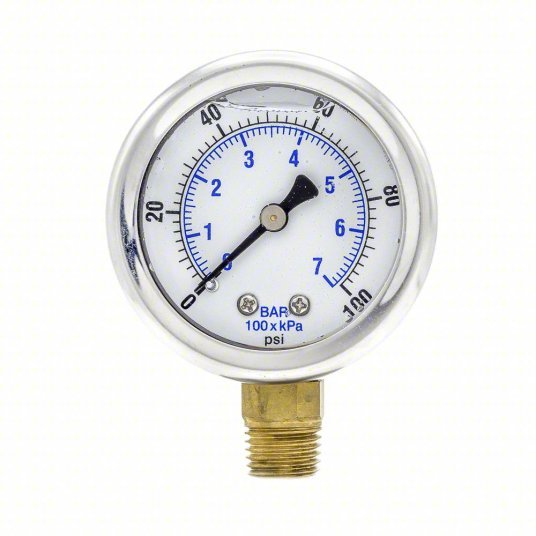

PIC 201L-204E Pressure Gauge, 0 to 100 psi, 1/4 in MNPT, Stainless Steel, Silver

UPC: 810024360215 | Harmonization / Schedule B : 9026.20.0000

Country of Origin: | Shipping Weight:

$21.83 - $21.83
$21.83
$21.83 - $21.83
$21.83
Industrial Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 100, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White
Item Industrial Pressure Gauge
Connection Location Lower
For Use With Hydraulic Applications, Media Compatible with Copper Alloy/Brass
Gauge Application Glycerine Filled for Added Durability in Applications Where Vibration or Pulsation is Present
Includes Vent Plug
Range 0 to 100 psi
Accuracy +/-3-2-3%
Material Stainless Steel
Gauge Primary Range Values 0 to 100
Gauge Primary Range Units psi
Gauge Connection Type MNPT
Basic Gauge Case Material Stainless Steel
Case Color Silver
Basic Gauge Socket Material Copper
Calibration Certificate Included No
Basic Gauge Sensor Material Copper
Gauge Lens Material Polycarbonate
Max. Pressure (PSI) 100
Gauge Primary Range Smallest Graduation 2
Pressure and Vacuum Gauge Type Pressure Gauge
Basic Gauge Lens Material Plastic
Gauge Connection Location Bottom
Operating Temp. Range 30 Degrees to 160 Degrees F
Gauge Primary Range Numbered Graduations 20
Gauge Sensor Material Copper Alloy
Gauge Case Color Stainless Steel
Gauge Case Material Stainless Steel
Gauge Panel Mountable No
Gauge Socket Material Copper Alloy
Basic Gauge Wetted Parts Copper
Liquid Filled Yes
Gauge Accuracy +/-3-2-3%
Smallest Graduation 2 psi
Graduations 20 psi
Series 201L
Gauge Filled With Glycerin
Socket Material Copper Alloy
Pressure Range 0 to 100 psi
Case Material Stainless Steel
Pointer Color Black
Gauge Wetted Parts Copper
Lens Material Polycarbonate
Gauge Accuracy Grade Grade B - Commercial
Pressure Range Type Pressure
Ambient Operating Temperature Range 30 Degrees to 160 Degrees F
Field Fillable No
Hazardous Location Rating Not Rated
Primary Scale Units psi
Blowout Safety Back No
Includes Mounting Hardware No
Lens Material - Gauge Plastic
Pointer Material Aluminum
Non-Sparking No
Bezel Material Stainless Steel
Panel-Mountable No
Primary Scale Minor Graduations 2
Dial Face Material Aluminum
Pressure Gauge Type General Purpose Dial Pressure Gauge
Accuracy Grade ASME B40.100 Grade B
Pressure Range (Secondary) 0 to 100 psi ( 0 to 7 bar )
Process Connection Type NPT
Dial Color White
Scale Type Dual
Removable Bezel No
Secondary Pressure Range 0 to 7 bar
Liquid-Filled Case Yes
Includes Vent Plug Yes
Sensor Material Copper Alloy
Vibration Resistance Liquid-Filled
Dry Dampening Feature None
Secondary Scale Units bar
Cleaned for Oxygen Service No
Primary Graduations 2
Accuracy Scale Mid-Scale
Process Connection Location Bottom
IP/NEMA Rating Not Rated
Includes Calibration Certificate No
Process Connection Gender Male
Freeze Resistant Movement No
Gauge Case Liquid Glycerin
Bezel Mounting Type Fixed
Primary Pressure Range 0 to 100
