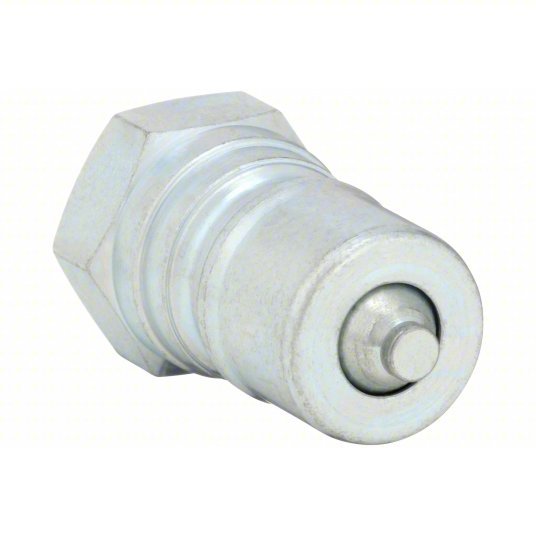

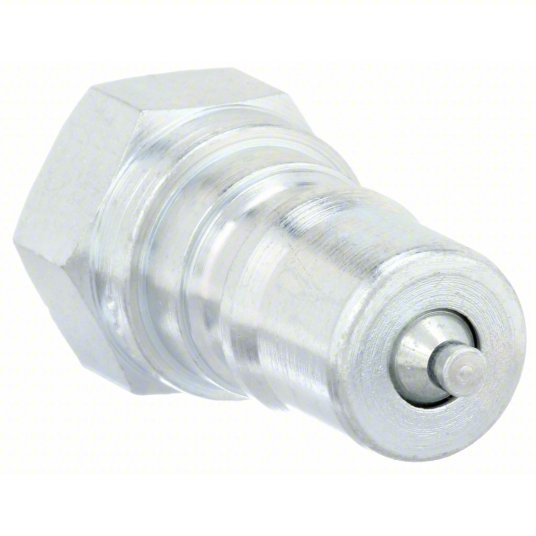

Parker H2-63 Hydraulic Quick Connect Hose Coupling 1/4 in Coupling Size, Steel, 11 lpm Max. Flow Rate

Hydraulic Quick Connect Hose Coupling, Plug, 60 Series, Steel, Coupling Size 1/4 in, Female, Max. Working Pressure @ 70 F 5,000 psi, Max. Flow Rate 11 lpm

Coupler Interchange Type	ISO 7241-1 Series B
Connection Type	NPTF
Coupler Flow Rate	3.0 gpm
Max. Pressure	5000 psi
Coupler Body Material	Steel
Sleeve Material	Steel
Coupler Finish	Zinc Plated
Series	60
Body Material	Steel
Coupling Locking Type	Ball
Shut Off	double
Valve Design	Poppet
Bearing Material	Stainless Steel
Includes	Heavy Duty Steel Nipples, Steam, Valve Actuator
Seal Material	Nitrile
Coupler Connection Type	FNPT
For Use With	ISO 7241-1 Series B Coupler
Standards	ISO 7241-1 Series B
Operating Temp. Range	-40 Degrees to 250 Degrees F
Locking Mechanism	Ball
Parker Interchange	H2-63
Hansen Interchange	2-K16
Max. Flow Rate	11 lpm
Includes Bearing	Yes
Includes Valve	Yes
Safeway Interchange	S101-2
Includes Shut Off	Yes
Valve Type	Poppet
Finish/Coating	Plain
Hose Fitting Gender	Female
Max. Working Pressure @ 70 F	5,000 psi
Fitting Type	Female NPTF
Coupling Component	Plug
Snap-Tite Interchange	72N4-4F
