Megger MJ159 Hand Cranked Megohmmeter, 1000VDC - KVM Tools Inc.KV3T841

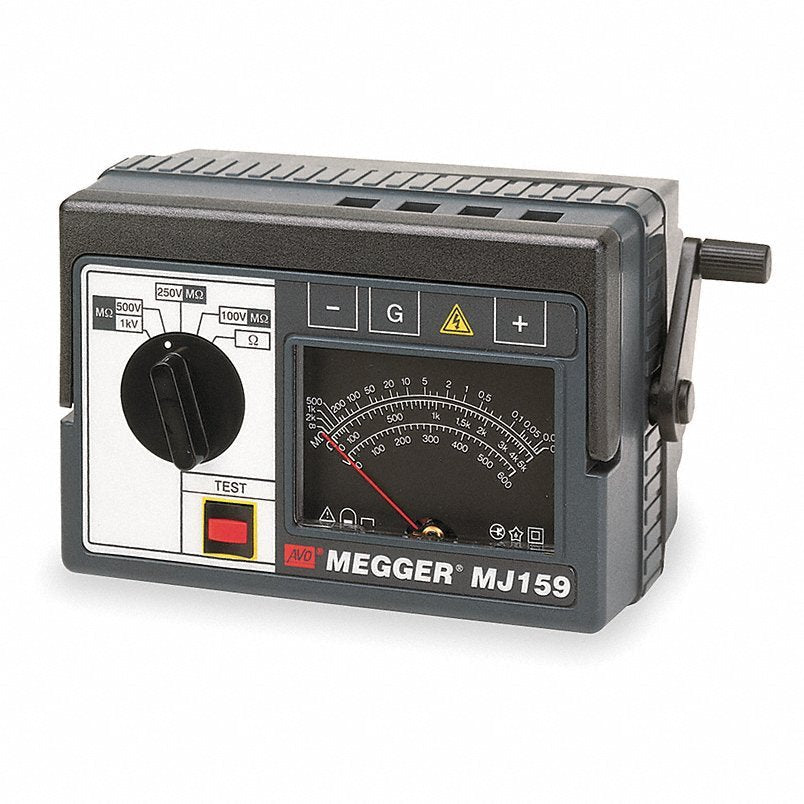

Megger MJ159 Hand Cranked Megohmmeter, 1000VDC

UPC: 750869619058 | Harmonization / Schedule B : 9030.39.0100

Country of Origin: | Shipping Weight:

$1,891.15 - $1,891.15
$1,891.15
$1,891.15 - $1,891.15
$1,891.15
Megohmmeter, Backlit Digital Display No, Bluetooth Compatible No, CAT Safety Rating CAT III, Calibration Certificate Available Separately, Capacitance Auto Discharge Yes, Display Type Analog, Dustproof No, Greater Than 30V Warning No, Includes Carrying Case, Power Cord, Test Lead Set ((3) Leads, (3) Prods, (3) Clips), (5) Test Record Cards, Insulation Limit Alarm Yes, Maximum Insulation Resistance 2 gigohm, Minimum Insulation Resistance 0 ohm, PI/DAR Testing No
Item Megohmmeter
Output Test Voltage 100/250/500/1000V DC
Insulation Resistance Range 2000 megohm
Accuracy +/-1.25% of Scale Length
Live Circuit Detection 0 to 600V AC/V DC
Resistance Range 5000 ohm
Display Analog
Features Impact Resistant Housing
Includes Carrying Case and Test Leads
Auto Ranging Yes
Product Type Tester Only
Bluetooth Compatible No
Features_Hold for TS No
Display Screen Type No Display
USB Data Download Included No
Minimum Insulation Resistance 0 ohm
Parameters Measured Resistance
Minimum Operating Temperature 14 Degrees F
Live Circuit Voltage 20 to 600V AC
Maximum Insulation Resistance 2 gigohm
Greater Than 30V Warning No
CAT Safety Rating CAT II 300V
Remote Test Probe Included No
Insulation Limit Alarm Yes
Timed Ramp Voltage Test No
Power Source_Org Design Only Hand Crank
Insulation Resistance Resolution 0 to 2,000 megaohm
Minimum AC Voltage Measured 20 V
Waterproof No
Operating Voltage 600V AC
Standards IEC 61326-1
Pass/Fail Selection Limits No
PI/DAR Testing No
Testing Functions Insulation
Test Current 2 mA
Safety Rating_Subhead CAT II 300V
Maximum Operating Temperature 122 Degrees F
Test Voltage 1,000V DC, 100V DC, 250V DC, 500V DC
Maximum AC Voltage Measured 600 V
Dustproof No
Backlit Digital Display No
Display Type Analog
Resistance Accuracy +/-1.25% of FSD
Megohmmeter Features Standard
Capacitance Auto Discharge Yes
Maximum Operating Temperature 122 Degrees F
Package Quantity 1
