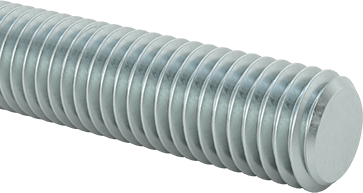

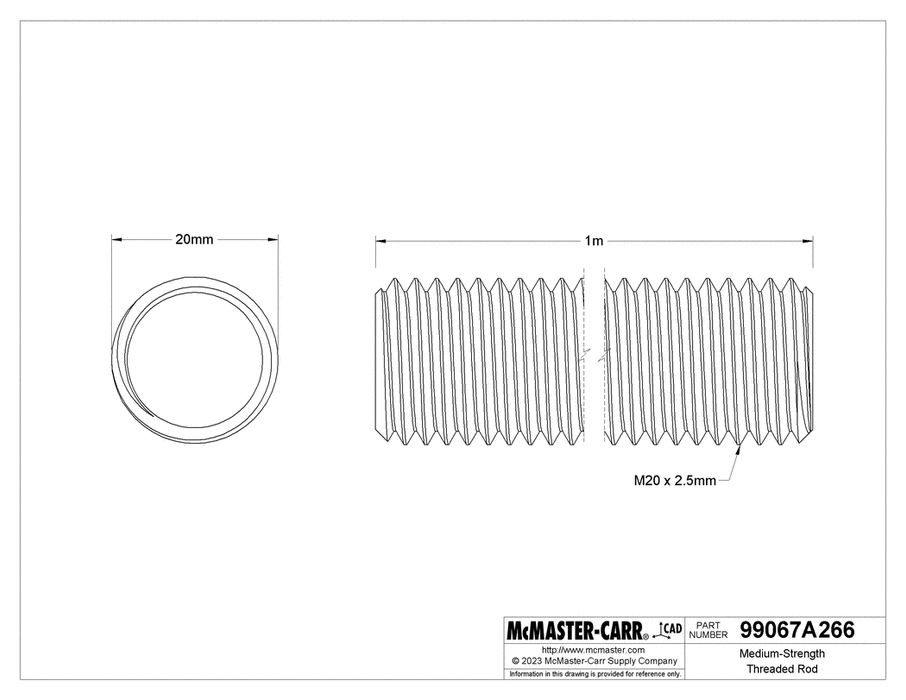

McMaster 99067A266 Medium-Strength Threaded Rod Class 8.8 Zinc-Plated Steel, M20 x 2.5 mm Thread, 1 M Long

UPC: | Harmonization / Schedule B : 7318.15.5000

Country of Origin: China | Shipping Weight: 4.586 lbs

Original price $116.59 - Original price $116.59
Original price
$116.59
$116.59 - $116.59
Current price $116.59

Anchor, connect, or hang components in a wide variety of applications, from mounting I-beams to suspending light fixtures.

Medium Fastener Strength RatingWith tensile strengths from 110,000 psi to 125,000 psi, these rods are strong enough for most industrial applications, such as anchoring machinery and connecting pipe flanges. They are about twice as strong as low-strength steel rods. To avoid stripped threads during installation, make sure your nuts are also medium-strength steel.

Zinc-Plated SteelThe most common choice for areas with occasional exposure to moisture.

Thread Direction

Right Hand


Fastener Strength Rating

Medium

Thread Size

M20 × 2.5 mm

Length

1 m

Tensile Strength

110,000 psi

Fastener Strength Grade/Class

ISO Class 8.8


Hardness

Rockwell C20

Specifications Met

DIN 975

Finish

Zinc Plated

Material

Steel

System of Measurement

Metric

Thread Fit

Metric Class 6g


Thread Spacing

Coarse


Thread Type

Metric


Threading

Fully Threaded

Country of Origin

China, Taiwan, Vietnam

DFARS Compliance

Not Specialty Metals Compliant

ECCN

EAR99

REACH Compliance

REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant

RoHS Compliance

RoHS 3 (2015/863/EU) Compliant

Schedule B Number

731815.5000

USMCA Qualifying

No
