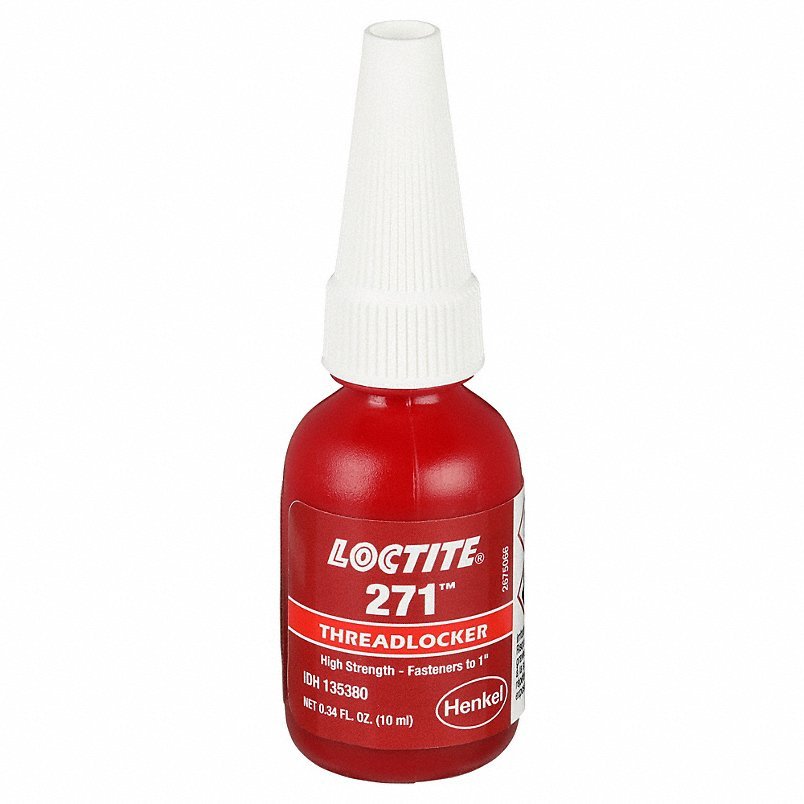

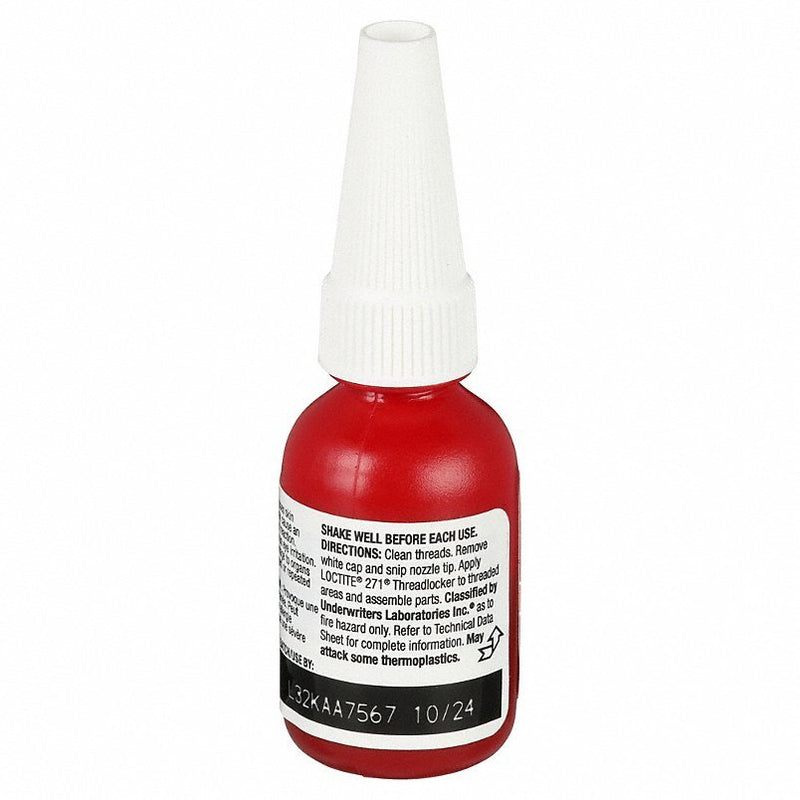

High-Strength Threadlocker, For Material Type Brass, Bronze, Copper, Iron, Manganese, Monel, Nickel, Steel, Threadlocking Strength High, Color Red, Series 271, Container Size 0.34 fl oz, Container Type Bottle, For Maximum Thread Diameter 1 in, Working Time 5 min, Breakaway Torque 150 in-lb, Cure Type Anaerobic, Compatible Primer Series Loctite 7649, Threadlocker Properties Oil Tolerant, Standards ASTM D-5363, MIL-S-46163-A, UL Listed, Chemical Base Dimethacrylate
| Threadlocker Strength |
High |
| Threadlocker Color |
Red |
| Threadlocker Container |
Bottle |
| Physical Form |
Liquid |
| Begins to Harden |
10 min |
| Threadlocker Disassembly |
Permanent |
| Threadlocker Classification |
Threadlocker |
| Chemical Type |
Anaerobic |
| Series |
LOCTITE 271 |
| Viscosity |
500 cP |
| Temp. Range |
-65 Degrees to 300 Degrees F |
| Application |
For Fasteners Up to 1 in Dia, Bolts, Studs and Press Fits. Requires Heat and/or Special Tools For Removal |
| Gap Fill |
0.007 in |
| Item |
High-Strength Threadlocker |
| Standards |
ASTM-D5363 Group 2 Class 2 Grade 1, MIL-S-46163A Type I Grade K, OSHA Hazard Communication, RoHS Compliant |
| Full Cure |
24 hr |
| Removable With |
Heat and Hand Tools |
| Flash Point |
Greater Than 93.3 Degrees C |
| Specific Gravity |
1.1 |
| Color |
Red |
| Container Type |
Bottle |
| Storage Requirements |
8 Degrees to 21 Degrees C |
| VOC Content |
7.81 g/L |
| VOC Content Weight Percentage |
0.01 % |
| Subhead Properties |
Oil Tolerant |
| Breakaway Torque |
150 in-lb |
| Prevailing Torque |
200 in-lb |
| Working Time |
5 min |
| Threadlocking Strength |
High |
| Compatible Primer Series |
Loctite 7649 |
| Breakaway Torque Range |
101 in-lb to 200 in-lb |
| Brand & Series |
LOCTITE 271 |
| Removal Method |
Hand Tool and Heat |
| Recommended Surface Preparation |
Dry Surface |
| Threadlocker Properties |
Oil Tolerant |
| Torque and Strength |
150 in-lb High |
| Product Form |
Liquid |
| Clean Up Method |
Solvent, Wire Brush |
| Properties & Color |
Oil Tolerant Red |
| VOC Content Range |
10 g/L and Under |
| For Material Type |
Brass, Bronze, Copper, Iron, Manganese, Monel, Nickel, Steel |
| Maximum Viscosity |
600 cps |
| Mixing Required |
No |
| Compatible Primer |
135286 |
| Minimum Operating Temperature |
-65 Degrees F |
| Minimum Viscosity |
400 cps |
| Maximum Operating Temperature |
300 Degrees F |
| Compatible Materials |
Brass, Bronze, Copper, Iron, Manganese, Nickel, Steel |
| Chemical Base |
Dimethacrylate |
| Threadlocking Properties |
Oil Tolerant |
| Cure Type |
Anaerobic |
| Full Cure Time |
1 day |
| Working Time Range |
5 min or Less |
| Package Quantity |
1 |
