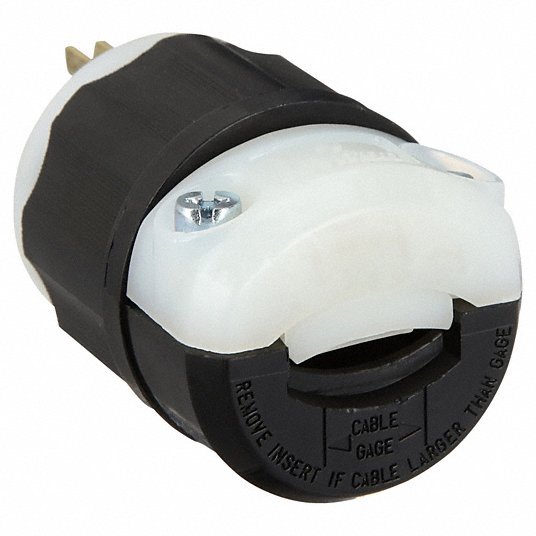

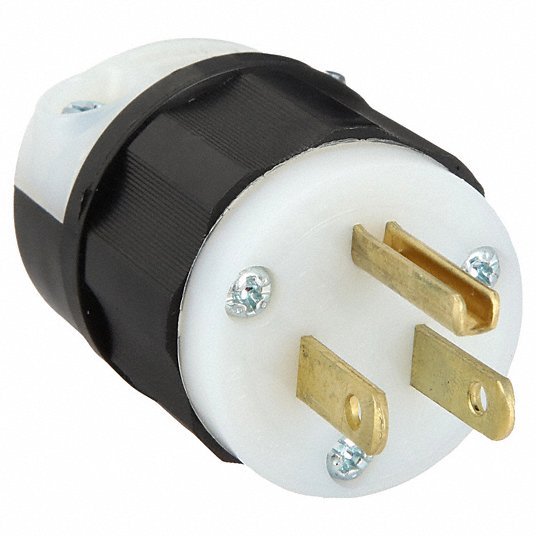

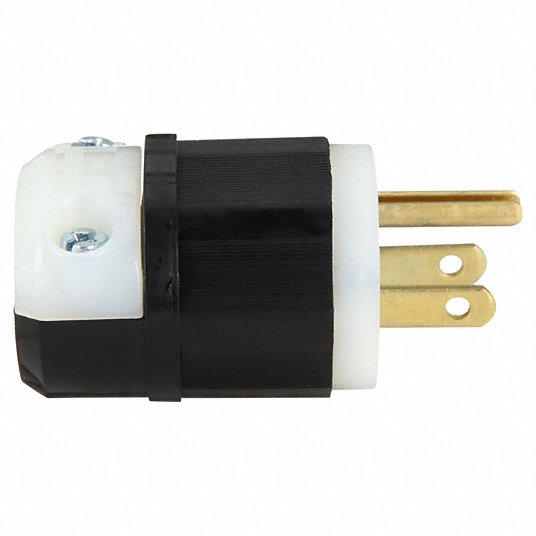

Leviton 5266-C Straight Blade Plug, Male, NEMA 5-15P, 15 A, 125V AC, 2 Poles, 3 Blades, Black/White - KVM Tools Inc.KV792TM2

Leviton 5266-C Straight Plug, Male, NEMA 5-15P, 15 A, 125V AC, 2 Poles

UPC: 094700421876 | Harmonization / Schedule B : 8536.69.4020

Country of Origin: | Shipping Weight:

$17.99 - $17.99
$17.99
$17.99 - $17.99
$17.99

Straight Blade Plug, Connection Orientation Straight, Current Rating 15 A, Grounding Grounded, Horsepower Rating 1/2 hp, Housing Color Black, White, IP Rating Not Rated, NEMA Plug Configuration 5-15P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, UV/Sunlight Resistant, UL 94 Flammability Rating V-2, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.39 in

Item Straight Blade Plug
Wiring Style Standard
Grade - Plugs and Receptacles Industrial
Amps - Plugs and Receptacles 15 A
Voltage - Plugs and Receptacles 125VAC
NEMA Plug Configuration - Plugs and Receptacles 5-15P
Number of Wires 3
Number of Poles 2
Standards ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, RoHS Compliant, UL 498 File E13399, UL Federal Specification WC-596 File E13393
Color - Plugs and Receptacles Black, White
IP Rating Not Rated
Material Impact Modified Nylon
Grade Industrial
Special Features Chemical Resistant, Resists Impact, Rough Use, Sunlight
NEMA Configuration 5-15
Phase Single
NEMA Enclosure Rating Not Rated
UL 94 Flammability Rating V-2
For Environment Dry
Market Industrial
Resistance Properties Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Blade Material Brass
Grounding Grounded
Minimum Operating Temperature -40 Degrees C
Polarized Yes
NEMA Plug Configuration 5-15P
Horsepower Rating 1/2 hp
Wire Connection Type Screw Terminals
Maximum Operating Temperature 60 Degrees C
Insulation Material Nylon
Housing Material Impact Modified Nylon
Connection Orientation Straight
Voltage Rating 125V AC
Housing Color Black, White
Shrouded No
Number of Blades 3
Hazardous Location Specification Not Applicable
Current Rating 15 A
Package Quantity 1
