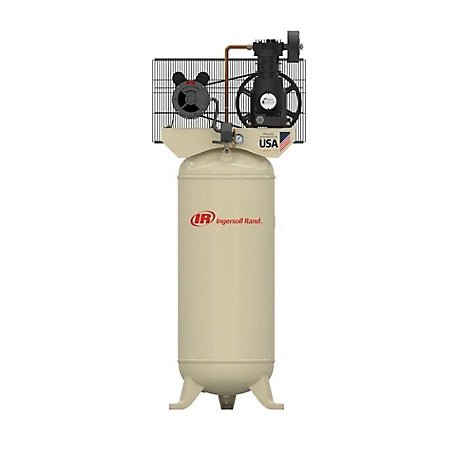

Ingersoll-Rand 20103172 5 hp 60 Gal Stationary Electric Vertical Air Compressor Single Phase, 230V, 135 Max psi, 18.1 CFM

UPC: 663023030739 | Harmonization / Schedule B : 8414.80.1685

Country of Origin: | Shipping Weight:

Original price $2,200.88 - Original price $2,200.88
Original price
$2,200.88
$2,200.88 - $2,200.88
Current price $2,200.88

The Ingersoll Rand Ingersoll Rand SS5L5 High Capacity Air Compressor is designed for professional duty. The durable cast iron construction of the high capacity air compressor is built with precision-engineered quality components. The oversized belt wheel of the air compressor allows for a reliable and cool operation. The high-efficiency stainless steel finger valves in the air compressor are efficient and easy to maintain.

  • 60 gal. vertical tank
  • Single-stage high capacity air compressor
  • 1 year limited warranty
  • Durable cast-iron cylinders, heads, and frame are designed for continuous operation and extended pump life
  • Oversized belt wheel on the high capacity air compressor provides reliable design and cooler operation
  • Ingersoll Rand synthetic lubricant provides 2,000-hour oil change intervals, four times longer than mineral-based lubricants
  • High-efficiency stainless steel finger valves in the air compressor are simple, efficient, and easy to maintain
  • Manual thermal overload protection of the air compressor's motor
  • Designed for any environment, our 5 HP single stage compressor is ideal for almost anyone, from individuals that thrive on do-it-yourself projects to the professional air compressor user. When performance is defined by maximum operating pressure, increased air flow and extended duty cycles, Ingersoll Rand is the product of choice. You will get a compressor that features maximum air power, reliable precision engineered components and a durable design that is built to last.
  • Long-Life: Durable cast iron construction, long-lasting extended pump life designed for over 5,000 hours of trouble-free use
Specification Description
Brand Ingersoll Rand
Country of Origin Made in USA
Air Delivery SCFM At 40 PSI 18.1 90 PSI
Air Delivery SCFM At 90 PSI 18.1 CFM
Airflow Volume 18.1 CFM 90 PSI
Air Outlet Size 1/2 in.
Amperage 21.5 Amp
Compressor Horsepower 5 HP
Compressor Maximum PSI 135 PSI
Compressor Type Vertical
Compressor Voltage 230V
Decibel Rating 78 dB
Drain System Manual
Drive Type Electric
Features The durable cast iron construction of the high capacity air compressor is built with precision-engineered quality components.
Phase Single
Number Of Power Speeds Single
Number Of Wheels 0
Power Type Electric
Primary Color Beige
Primary Material Cast Iron
Product Height 80 in.
Product Length 50 in.
Product Weight 380 lb.
Product Width 40 in.
Pump Material Cast iron
Stage Type Single-Stage
Tank Capacity 60 gal.
Tank Fill Time 0 minutes
Tank Orientation Vertical
Warranty 1-Year Limited, 2-Year Pump Warranty with IR All Season Select Lubricant from initial startup
Manufacturer Part Number 20103172
