Hydraforce PD10-40-0-NS-110 Piloted 3-Way Valve

Hydraforce PD10-40-0-NS-110 Piloted 3-Way Valve

UPC: | Harmonization / Schedule B : 8481.80.1040

Country of Origin: | Shipping Weight:

Sold out
$62.10 - $62.10
$62.10
$62.10 - $62.10
$62.10

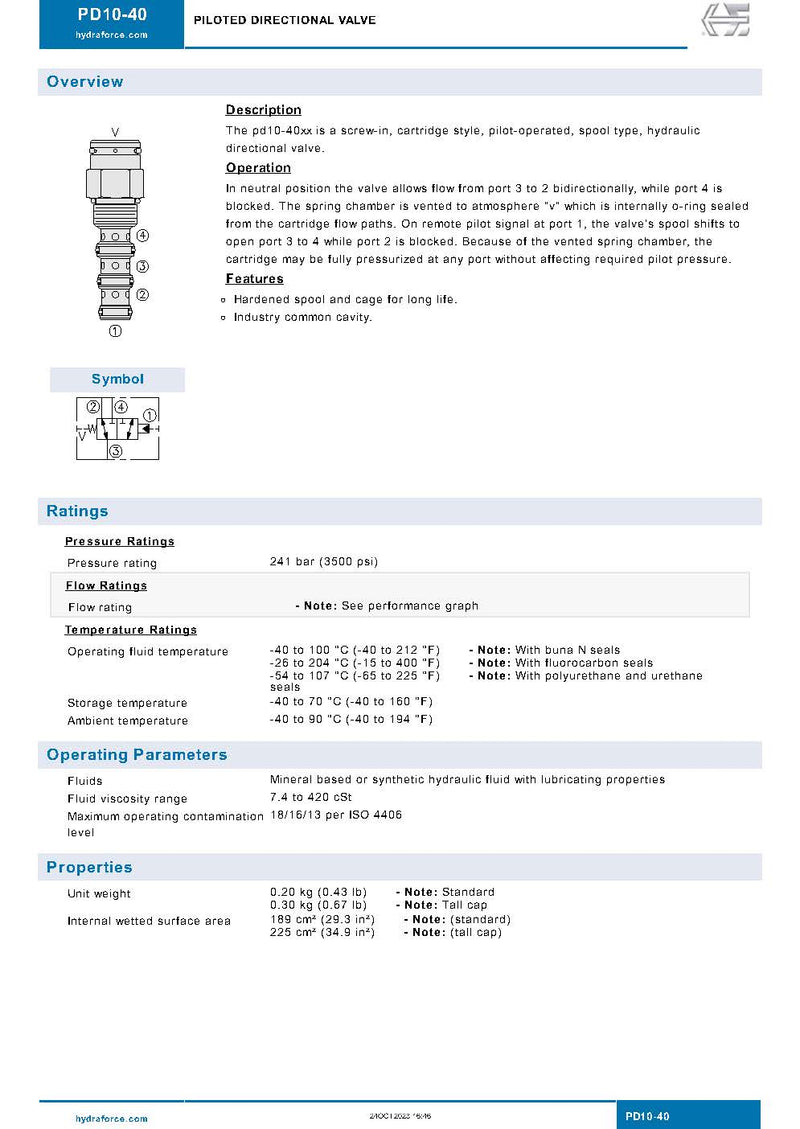

The pd10-40xx is a screw-in, cartridge style, pilot-operated, spool type, hydraulic directional valve.

Description

The pd10-40xx is a screw-in, cartridge style, pilot-operated, spool type, hydraulic directional valve.

Operation

In neutral position the valve allows flow from port 3 to 2 bidirectionally, while port 4 is blocked. The spring chamber is vented to atmosphere "v" which is internally o-ring sealed from the cartridge flow paths. On remote pilot signal at port 1, the valve's spool shifts to open port 3 to 4 while port 2 is blocked. Because of the vented spring chamber, the cartridge may be fully pressurized at any port without affecting required pilot pressure.

Features

  • Hardened spool and cage for long life.
  • Industry common cavity.

Ratings

Pressure Ratings
Pressure rating:
  • 241 bar (3500 psi)

Temperature Ratings

Operating fluid temperature:
  • -40 to 100 °C (-40 to 212 °F)With buna N seals
  • -26 to 204 °C (-15 to 400 °F)With fluorocarbon seals
  • -54 to 107 °C (-65 to 225 °F)With polyurethane and urethane seals
Storage temperature:
  • -40 to 70 °C (-40 to 160 °F)
Ambient temperature:
  • -40 to 90 °C (-40 to 194 °F)

Operating Parameters


Fluids:
  • Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range:
  • 7.4 to 420 cSt
Maximum operating contamination level:
  • 18/16/13 per ISO 4406

Properties

Unit weight:
  • 0.20 kg (0.43 lb)Standard
  • 0.30 kg (0.67 lb)Tall cap
Internal wetted surface area:
  • 189 cm² (29.3 in²)(standard)
  • 225 cm² (34.9 in²)(tall cap)
