| Item |

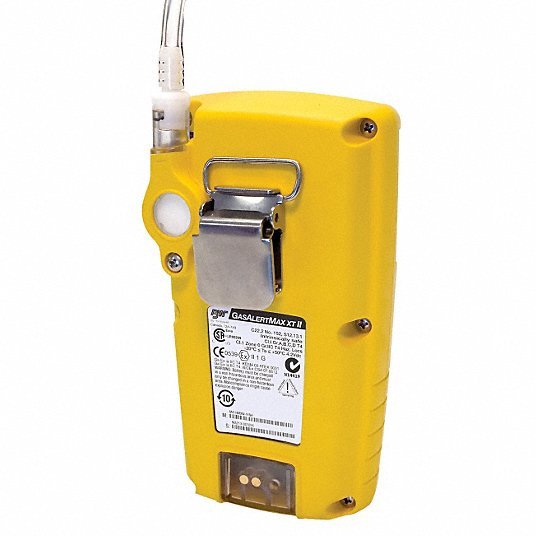

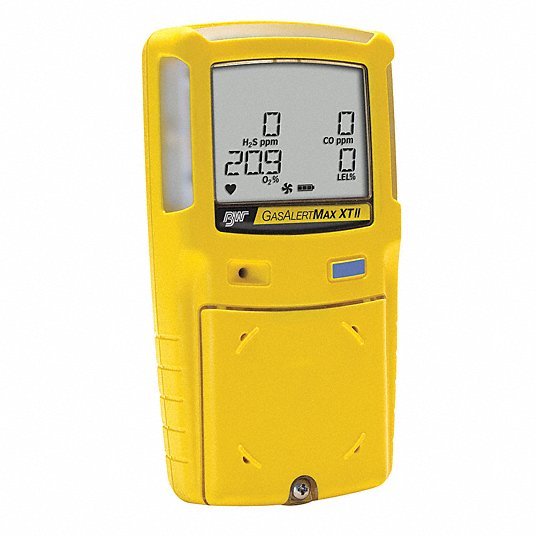

Multi-Gas Detector |
| Detects |
Carbon Monoxide, Combustible, Hydrogen Sulfide, Oxygen |
| Gas Type |
CO, H2S, LEL, O2 |
| Sensor Range |
0 to 5.0% v/v, CO 0 to 500 ppm, H2S 0 to 100 ppm, LEL 0 to 100%, O2 0 to 30.0% |
| Housing Color |
Yellow |
| Alarm Setting |
Adjustable |
| Alarm Type |
Audible, Vibrating, Visual |
| Battery Type |
Lithium Polymer |
| Battery Life |
8 to 13 hr |
| Includes |
IR Connectivity Kit, 0.5 LPM Regulator, Sampling Probe, Calibration Gas (2.5% CH4, 18% O2, 25 ppm H2S, 100 ppm CO) |
| Display |
Alphanumeric LCD |
| Operating Temp. Range |
-20 Degrees to +50 Degrees C (-4 Degrees to +122 Degrees F) |
| Resolution |
CO (1 ppm Increments), H2S (1 ppm Increments), LEL (1% LEL Increments), O2 (0.1% v/v Increments) |
| Features |
Monitors up to Four Hazards, Water-Resistant, Integrated Sampling Pump, Standard Datalogging and Eventlogging, Concussion-Proof Boot |
| Standards |
CSA Class 1, Div. 1, Gr A, B, C & D, ATEX CE II 1 G Ga Ex ia IIC T4, IECEx Ga Ex ia IIC T4 |
| Product Type |
Multi-Gas Detector & Confined Space Kit |
| Temperature Code |
T4 |
| Hazardous Location Specification |
Class I Divisions 1 Groups A, B, C, D |
| Data Logger |
Yes |
| Sub-Brand |
BW |
| Number of Gases Detected |
4 |
| Operating Temperature - Maximum |
122 Degrees F |
| Battery Chemistry |
Lithium Ion Polymer |
| Display Screen Type |
LCD |
| Gas Detected |
Carbon Monoxide, Combustible Gas, Hydrogen Sulfide, Oxygen |
| Operating Temperature - Minimum |
-4 Degrees F |
| Series |
BW Max XT |
| Measurement Range |
0 to 5% vol, Carbon Monoxide (0 to 500 ppm), Hydrogen Sulfide (0 to 100 ppm), LEL 0 to 100%, Oxygen (0 to 30% vol) |
| Includes Probe |
Yes |
| Replaceable Battery |
Yes |
| Alert Type |
Light, Sound, Vibration |
| Display Type |
Digital |
| Includes Test Gas |
Yes |
| Includes Regulator |
Yes |
| Communication Protocol |
PC-Compatible Interface, Wireless |
| Resistance Properties |
Water Resistant |
| Alarm Setting Adjustment |
Adjustable Alarm Setting |
| Package Quantity |
1 |
