Bodine B100 3240 W, 450 lm Linear Fluorescent Emergency Ballast - KVM Tools Inc.KV12X228

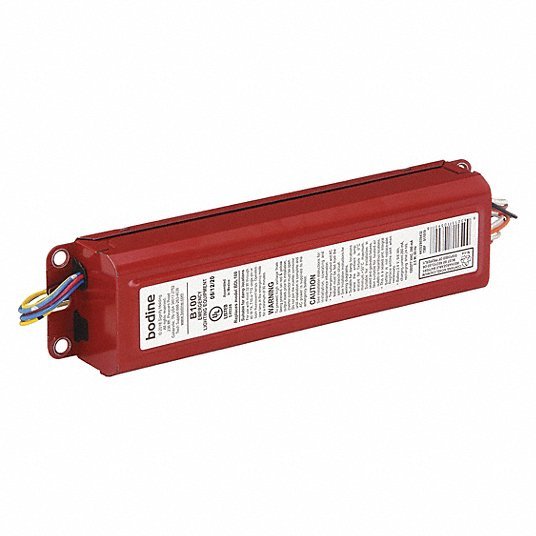

Bodine B100 3240 W, 450 lm Linear Fluorescent Emergency Ballast

UPC: 663015103908 | Harmonization / Schedule B : 8504.10.0000

Country of Origin: | Shipping Weight:

$125.85 - $125.85
$125.85
$125.85 - $125.85
$125.85
Bodine, Electronic, Emergency Fluorescent Ballast, Input Voltage 120/277V AC, Number of Bulbs Supported 1, Max. Bulb Watts 40 W, T10, T12, T8 Ballast Bulb Type, Initial Lumens 350 to 450 lm, Steel Housing Material, 9 7/16 in Length, 2 7/16 in Width, 1 1/2 in Height, Standard Profile, 90 min Emergency Illumination Time, 24 hr Recharge Time


Item - Emergency Lighting and Exit Signs Fluorescent Emergency Ballast
Lamp Watts - Emergency Lighting and Exit Signs 32 to 40
Lamp Type - Fluorescent Lighting Battery Backup Systems T8, T10, T12
Initial Lumens - Emergency Lighting and Exit Signs 350 to 450
Housing Material Steel
Voltage - Emergency Lighting and Exit Signs 120/277
Number of Lamps Supported 1
Emergency Illumination Time 90 min
Standards UL Listed
Emergency Illumination Time - Emergency Lighting and Exit Signs 90 min.
Battery Type Nickel Cadmium
Lamp Watts 32-40
Input Voltage 120/277V AC
Item Emergency Fluorescent Ballast
Lamp Type T8, T12
Initial Lumens 350 to 450 lm

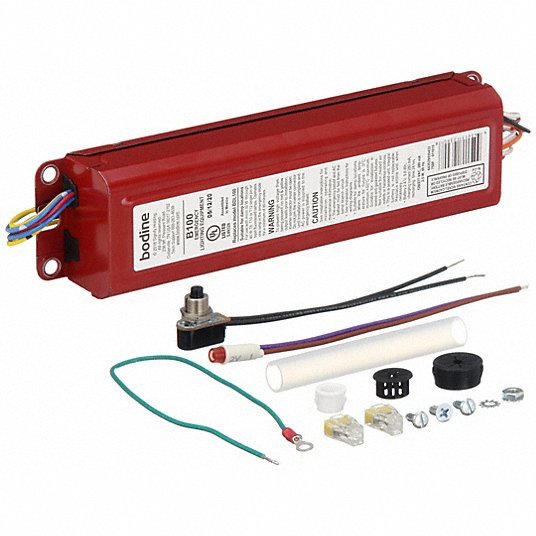

Includes Parts kit with labels
Number of Bulbs Supported 1
Profile Standard Profile
Recharge Time 24 hr
Operating Amps @ 120V 0.28 A
Brand and Series Bodine
Max. Bulb Watts 40 W
Frequency 60Hz
Bulb Watts 40W
Ballast Bulb Type T10, T12, T8
Wiring Connection Wiring Attached
Meets Class 2 Electrical Wiring No
CA Title 20 Compliant No
Temperature Range 32 Degrees to 122 Degrees F Damp Location, 32 Degrees to 131 Degrees F Dry Location
Ballast Type Electronic
For Use With Fluorescent Emergency Lighting
Package Quantity 1
