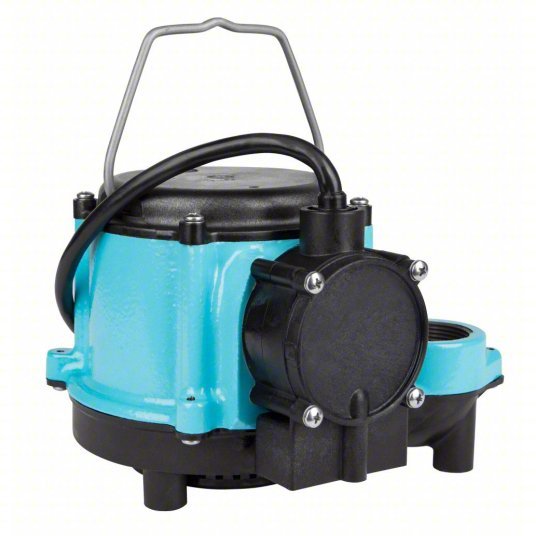

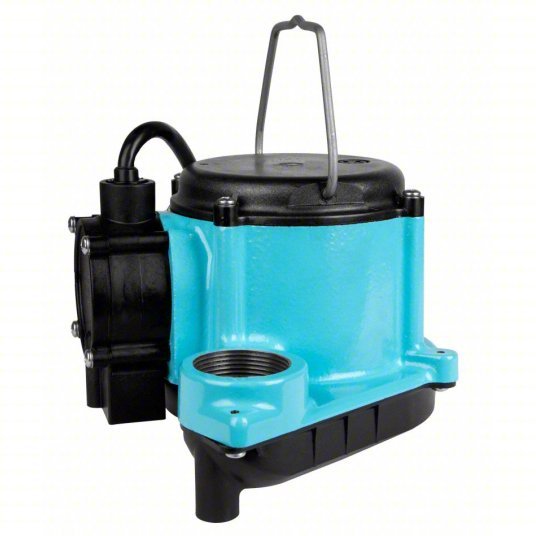

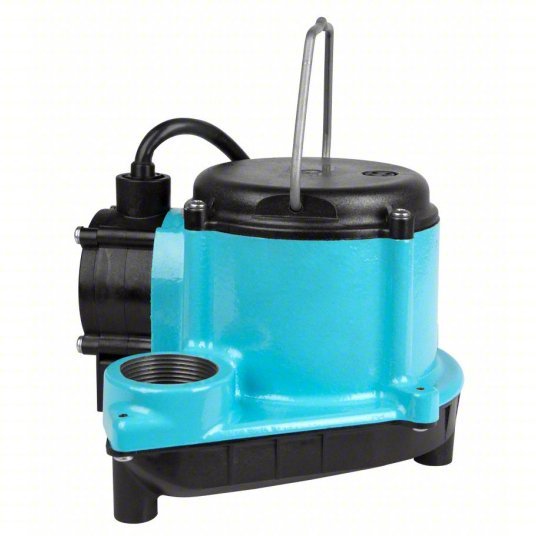

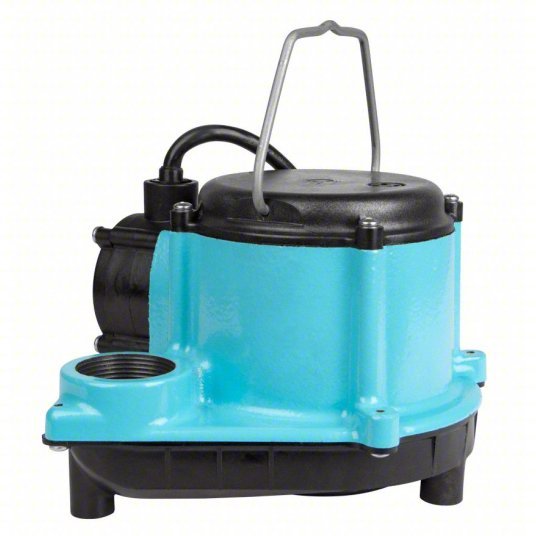

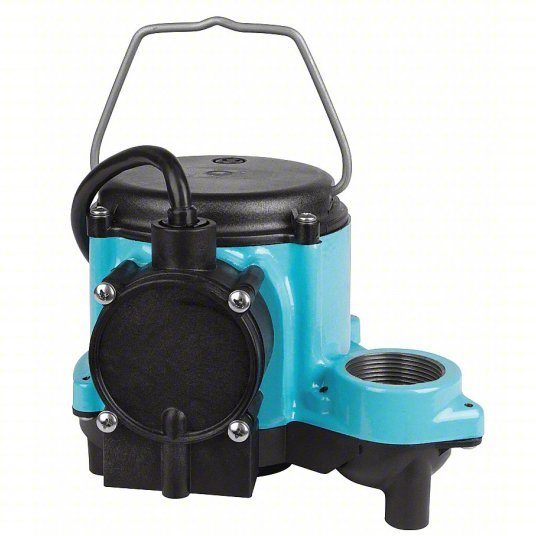

Little Giant 506158 1/3 HP 1-1/2 in. F Submersible Sump Pump 115V Diaphragm

UPC: 010121069091 | Harmonization / Schedule B : 8413.70.2004

Country of Origin: | Shipping Weight:

Original price $235.98 - Original price $235.98
Original price
$235.98
$235.98 - $235.98
Current price $235.98
This Little Giant 6-CIA 1/3 HP 1-1/2" F Submersible Sump Pump is a powerful tool that you can rely on. It has a shaft seal made of nitrile with carbon and ceramic faces, which provides increased durability. With an off point from 1 in to 4 in. and an on point from 7 in to 10 in., this submersible sump pump delivers maximum performance when it comes to draining liquids. The epoxy coated cast iron housing keeps the unit free from rust and corrosion, while the diaphragm casing ensures long life for the product. This 1/3 hp sump pump has a max liquid temperature of 140 degrees F and a max temp of 140 degrees F. If you need a dependable submersible sump pump, the Little Giant 6-CIA will not let you down.
Discharge NPT 1-1/2" F
Housing Material Epoxy Coated Cast Iron
HP 1/3
Hz 50/60 Hz
Impeller Material Nylon
Max. Head 18 ft
Max. Temp. 140 Degrees F
Motor RPM 1500
Motor Type Split Phase
Shaft Seal Nitrile with Carbon and Ceramic Faces
Voltage 115V
Max. Head - Pumps 18 ft.
Shaft Seal Material - Pumps Carbon, Ceramic
Switch Type - Pumps Diaphragm
Amps - Pumps 9.00
Item - Sump Pumps Submersible Sump Pump
NEC Cord Designation SJTW
Alarm Included No
Off Point 1 in to 4 in
Switch Type Diaphragm
GPM of Water @ 10 Ft. of Head 29
Alarm No
Amps 9 A
GPM of Water @ 15 Ft. of Head 13
Max. Liquid Temp. 140 Degrees F
Mechanical Seal CRB/CMC
Pump Body Material Cast Iron
GPM of Water @ 5 Ft. of Head 46
Item Submersible Sump Pump
Pump HP 1/3
Voltage - Pumps 120VAC
Gauge/Conductor 18/3
Base Material Polypropylene
Impeller Material - Pumps Nylon
On Point 7 in to 10 in
Switch Actuation Diaphragm
Body Material Cast Iron
Rated Voltage 115V AC
Switch Electrical Connection Integral
RPM 1,500 RPM
Flow Rate @ 15 Ft. of Head 13 gpm
Flow Rate @ 10 Ft. of Head 29 gpm
Discharge Standard NPT
Flow Rate @ 5 Ft. of Head 46 gpm
Discharge Gender Female
Duty Cycle Continuous
Discharge 1 1/2 in FNPT
