Viega 77027 90 Degree Elbow Copper, Press-Fit x Press-Fit, 1 in x 1 in Copper Tube Size - KVM Tools Inc.KV48RH54

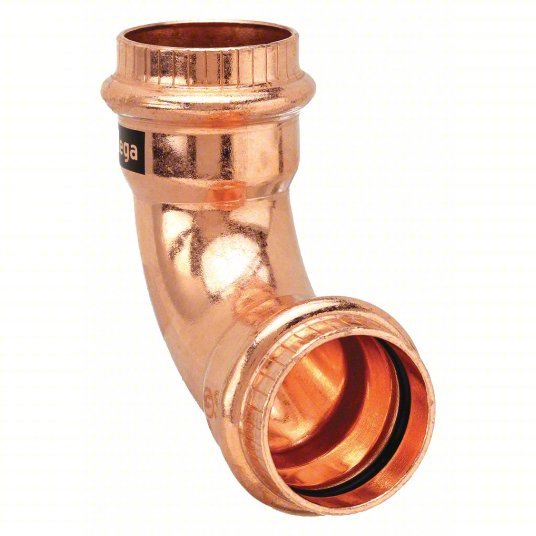

Viega 77027 90 Degree Elbow Copper, Press-Fit x Press-Fit, 1 in x 1 in Copper Tube Size

UPC: 691514770277 | Harmonization / Schedule B : 7412.20.0090

Country of Origin: | Shipping Weight:

$12.52 - $12.52
$12.52
$12.52 - $12.52
$12.52
90 Degree Elbow, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Press-Fit, Fitting Side A Copper Tube Size 1 in, Fitting Side B Copper Tube Size 1 in, Fitting Material Copper, O-Ring Material EPDM, Specific Fitting Shape 90 Degrees Elbow, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F, Standards ASTM B75, ASTM B88
Item 90 Degree Elbow
Tube Fitting Material Copper
Specific Fitting Shape 90 Degrees Elbow
Fitting Connection Type Press x Press
Temp. Range 0 Degrees to 250 Degrees F
Basic Pipe Fitting Material Metal
Basic Pipe Fitting Shape Elbow
Max. Pressure 200 psi
Pipe Fitting Connection Type Press x Press
Specific Pipe Fitting Shape 90 Degrees Elbow
Compliance ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Standards ASTM B75, ASTM B88
Fitting Side B Connection Type Press-Fit
Connection Type Press-Fit x Press-Fit
Fitting Material Copper
Application Potable Water
Fitting Side A Connection Type Press-Fit
Maximum Operating Temperature 250 Degrees F
O-Ring Material EPDM
Fitting Shape Elbow
End Connection Type Press
Stop and Shape 90 Degrees Elbow
Minimum Operating Temperature 0 Degrees F
Maximum Operating Pressure 200 psi
