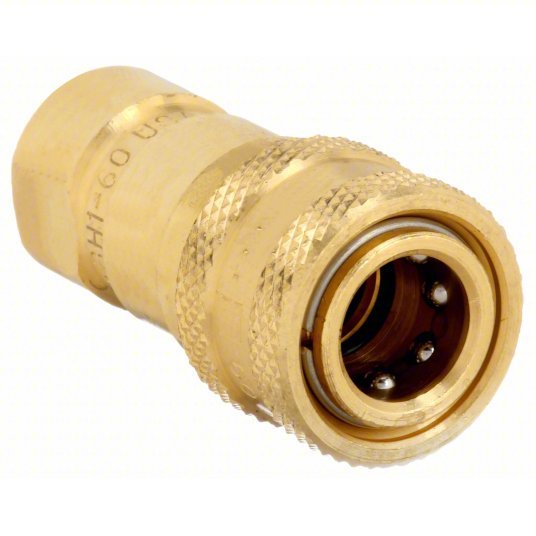

Parker BH1-60 Hydraulic Quick Connect Hose Coupling, Brass Body, Sleeve Lock, 1/8"-27 Thread Size, 60 Series - KVM Tools Inc.KV31A845

Parker BH1-60 Hydraulic Quick Connect Hose Coupling, Brass Body, Sleeve Lock, 1/8"-27 Thread Size, 60 Series

UPC: 997966001557 | Harmonization / Schedule B : 8481.80.1095

Country of Origin: | Shipping Weight:

$42.65 - $42.65
$42.65
$42.65 - $42.65
$42.65

Hydraulic Quick Connect Hose Coupling, Socket, 60 Series, Brass, Coupling Size 1/8 in, Female, Max. Working Pressure @ 70 F 3,000 psi, Max. Flow Rate 3 lpm

Item Hydraulic Quick Connect Hose Coupling
Quick Coupler Type Hydraulic Coupler Body
Coupler Interchange Type ISO 7241-1 Series B
Connection Type NPTF
Coupler Flow Rate 0.8 gpm
Max. Pressure 1000 psi
Coupler Body Material Brass
Sleeve Material Brass
Coupler Finish Plain
Series 60
Body Material Brass
Coupling Locking Type Sleeve
Includes Sleeve-Lock, Steam, Valve Actuator
Seal Material Nitrile
Bearing Material Stainless Steel
Standards ISO 7241-1 Series B
Valve Design Poppet
Locking Mechanism Ball
Shut Off double
Parker Interchange BH1-60
Operating Temp. Range -40 Degrees to 250 Degrees F
Coupler Connection Type FNPT
For Use With ISO 7241-1 Series B Nipple
Hansen Interchange B1-H11
Max. Working Pressure @ 70 F 3,000 psi
Includes Valve Yes
Coupling Component Socket
Fitting Type Female NPTF
Safeway Interchange BS105-1
Hose Fitting Gender Female
Max. Flow Rate 3 lpm
Includes Bearing Yes
Valve Type Poppet
Finish/Coating Plain
Snap-Tite Interchange B72C2-2F
Includes Shut Off Yes
Package Quantity 1
