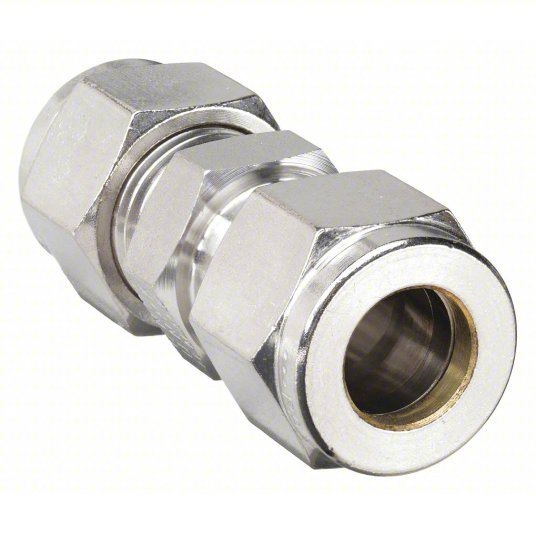

Parker 4SC4-316 Union 316 Stainless Steel, Compression x Compression, For 1/4 in x 1/4 in Tube OD
UPC: 818228177035 | Harmonization (Schedule B): 7307.22.5000
SKU KV1PZE8
Original price
$35.89
-
Original price
$35.89
Original price
$35.89
$35.89
-
$35.89
Current price
$35.89
Union, Application Gases, Liquids, Fitting Side A Connection Type Compression, Fitting Side B Connection Type Compression, Fitting Material Stainless Steel, Fitting Side A Tube Outer Diameter 1/4 in, Fitting Side B Tube Outer Diameter 1/4 in, Material Grade 316, Maximum Operating Pressure 10,300 psi, Maximum Operating Temperature 649 Degrees C, Overall Length 1 5/8 in, Specific Fitting Shape Straight Connector, Compatible Fitting Brands A-LOK, Thread Size A 7/16-20, Thread Size B 7/16-20
| Tube Fitting Material | 316 Stainless Steel |
| Basic Pipe Fitting Material | Metal |
| Specific Pipe Fitting Shape | Union |
| Specific Fitting Shape | Straight Connector |
| Pipe Fitting Connection Type | A-LOK(R) x A-LOK(R) |
| UPC | 818228177035 |
| Temp. Range | -425 Degrees to 1200 Degrees F |
| Fitting Connection Type | A-LOK(R) x A-LOK(R) |
| Basic Pipe Fitting Shape | Union |
| Standards | ASME SA-213, ASTM A213, ASTM A249, ASTM A269, MIL-T-8504, MIL-T-8506 |
| Fitting Side A Connection Type | Compression |
| Maximum Operating Pressure | 10,300 psi |
| Minimum Operating Temperature | 255 Degrees C |
| Compatible Fitting Brands | A-LOK |
| Resistance Properties | Corrosion-Resistant, Gall-Resistant |
| System of Measurement | Imperial |
| Maximum Operating Temperature | 649 Degrees C |
| Application | Gases, Liquids |
| Fitting Material | Stainless Steel |
| Compatible Tube Material | Stainless Steel |
| Fitting Side B Connection Type | Compression |
| Material Grade | 316 |
| Sub-Category | Unions |
| Connection | Tube |
