The Vortex MixMate is a high-quality harsh chemical powder mixing barrel built to withstand tough industrial applications. Its design allows for safe, rapid, homogeneous mixing and dispensing of small batches of hazardous liquids.
Complete with a stainless steel drum, work table and protection baffle, the MixMate performs easy and effective industrial mixing and dispensing of caustic solution with no risk of physical exposure to personnel.
Its most common use is in oil and gas drilling fluid mixing to blend dry caustic soda powder into small batches of solution and feed it into drilling fluids to regulate pH level.
Benefits
• Simple robust design
• High quality construction
• Low maintenance
• Safe, effective mixing of harsh chemicals
• Easy dispensing of mixed solutions
• Easily integrated with the Vortex Shear-Mixer
Standard Design

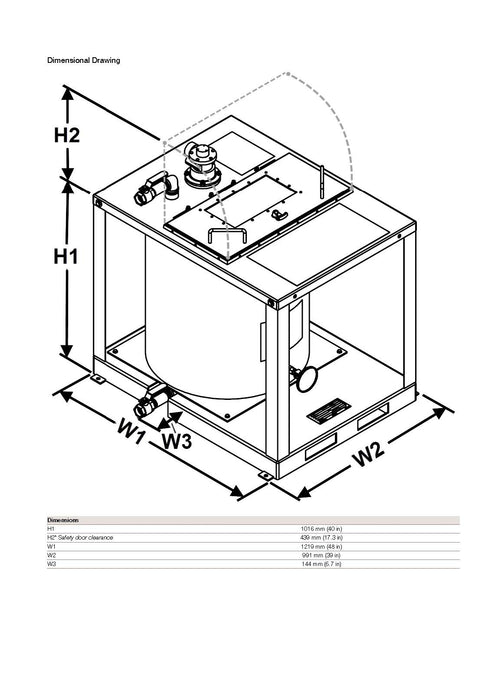

The Vortex Mixmate consists of a 379 L (100 gallon) stainless steel drum with work table and a protection baffle designed to eliminate the risk of liquid splash-back during mixing. It features a stainless steel, lockable, hinged safety cover with a
viewing window. The unit has 38mm (1.5”) water inlet and solution discharge outlets equipped with stainless steel ball valves, a 76 mm (3”) overflow port, a stainless steel turbine impeller and shaft powered by a four horsepower air motor,
and a stainless steel skid base.
Technical Data
Maximum caustic powder load 90.7 kg (200 lbs)
Maximum liquid capacity 378.5 L (100 gallons )
Operating air pressure 6.9 Bar (100 PSI)
Weight 277 kg (610 lbs)
