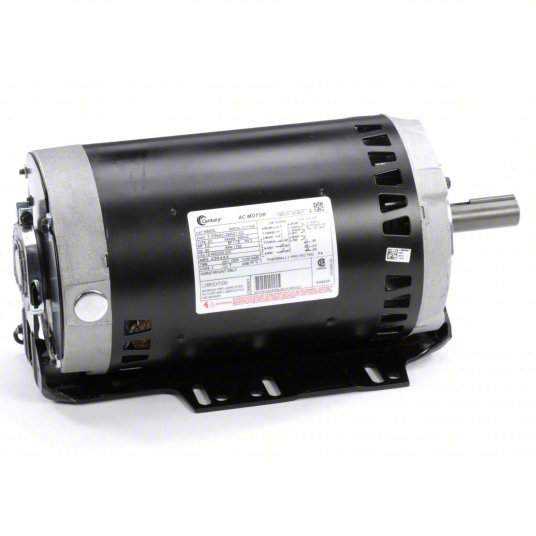

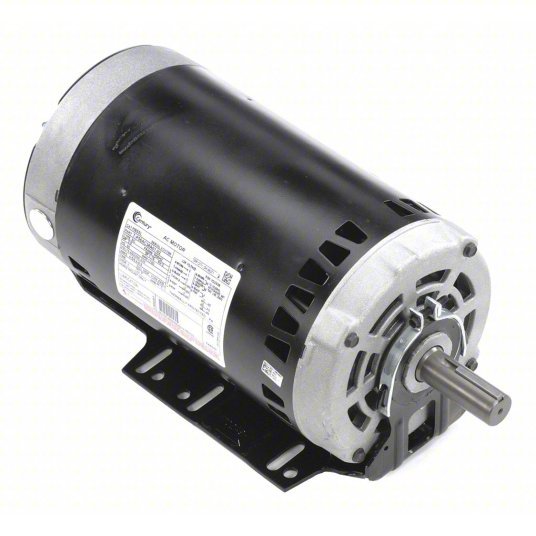

Century H855L OEM Replacement Motor 3 HP, 1,750 Nameplate RPM, 200 - 230/460V AC, 3 - Phase, 1,701 - 1,800 - KVM Tools Inc.KV48Z207

Century H855L OEM Replacement Motor 3 HP, 1,750 Nameplate RPM, 200-230/460V AC, 3-Phase, 1,701-1,800

UPC: | Harmonization / Schedule B : 8501.52.4000

Country of Origin: | Shipping Weight:

$734.84 - $734.84
$734.84
$734.84 - $734.84
$734.84
OEM Replacement Motor, Three Phase, Motor Design 3-Phase, 3 HP, Nameplate RPM 1,750, No. of Speeds 1, Voltage 200-230/460V AC, Full Load Amps 4.5/9.4 to 8.9 A, R56HZ Frame, Usable @ 208V Yes, Usable @ 200V Yes, Motor Service Factor 1.15, Motor Thermal Protection Thermally Protected, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Resilient Base, Motor Frame Material Rolled Steel
Frame R56HZ
HP 3
Item OEM Replacement Motor
Motor Application HVAC/R
Motor Design 3-Phase
Motor Enclosure Design Open Dripproof
Motor Mounting Type Resilient Base
Motor Shaft Rotation CCW
Motor Thermal Protection Thermally Protected
Nameplate RPM 1,750
No. of Speeds 1
Phase Three
RPM Range 1,701-1,800
Voltage 200-230/460V AC
Motor Bearings Ball
Ins. Class F
Max. Ambient Temp. 40 Degrees C
Full Load Amps 4.5/9.4 to 8.9 A
Standards CSA, UL
Motor Shaft Design Keyed
Motor Service Factor 1.15
Application Fans and Blowers
Voltage Compatibility 460/200-230V AC
Duty Cycle Continuous
Motor Frame Material Rolled Steel
Nominal Efficiency 78.5 %
Usable @ 208V Yes
Usable @ 200V Yes
Weight 44 lb
