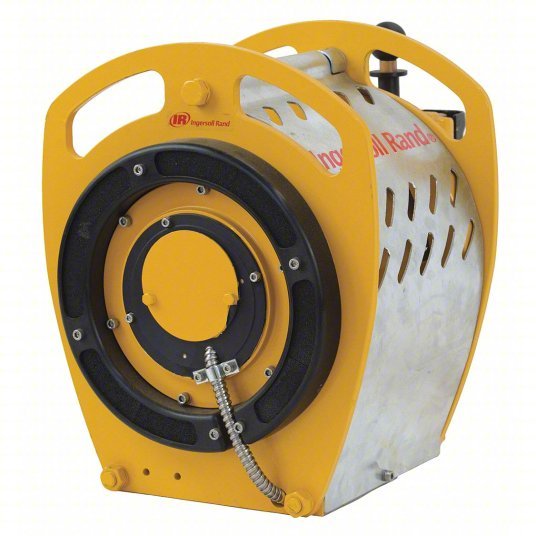

Ingersoll Rand LS2-1500R Air Winch 3,300 lb 1st Layer Load Capacity, 31 fpm 1st Layer Line Speed, Planetary
UPC: | Harmonization (Schedule B):
SKU KV403U12
Original price
$18,803.98
-
Original price
$18,803.98
Original price
$18,803.98
$18,803.98
-
$18,803.98
Current price
$18,803.98
Air Winch, 1st Layer Line Speed 31 fpm, 1st Layer Load Capacity 3,300 lb, Fully Wound Load Capacity 3,300 lb, Number of Gear Settings 2, Number of Speeds Variable, Cable Length 197 ft, Maximum Cable Length 200 ft, Air Inlet Type BSP, Air Pressure 90 psi, Maximum Air Consumption 169 cfm, Minimum Operating Temperature 14 Degrees F, Maximum Operating Temperature 140 Degrees F, Air Inlet Gender Female, Air Inlet Size 3/4 in, Body Material Cast Iron, Steel, Body Type Not Applicable, Color Yellow.
Ships from supplier. Expected to arrive by end of Aug, 2024.
| Winch Type | Lifting |
| 1st Layer Load Capacity | 3,300 lb |
| 1st Layer Line Speed | 31 fpm |
| (F)NPT Inlet | 3/4 in |
| Air Consumption | 170 scfm |
| Motor Type | Gear Motor |
| Winch Gear Type | 2-Stage Planetary |
| 5th Layer Line Speed | 32 fpm |
| Standards | ANSI/ASME B30.7, CE FEM Classification 1 Bm |
| 2nd Layer Line Pull | 3,300 lb |
| 3rd Layer Line Speed | 32 fpm |
| 3rd Layer Line Pull | 3,300 lb |
| 2nd Layer Line Speed | 32 fpm |
| Winch Gear Ratio | 4.3:1 |
| Control Type | Manual Lever |
| Series | 2nd Generation |
| Required Pressure | 90 psi |
| 4th Layer Line Speed | 23 fpm |
| 5th Layer Line Pull | 3,300 lb |
| 4th Layer Line Pull | 3,300 lb |
| Gear Ratio | 4.3:1 |
| Gear Type | Planetary |
| Number of Speeds | Variable |
| Compatible Line | Wire Rope |
| Handle Attachment Type | Permanent |
| Maximum Pulling Capacity | 3,300 lb |
| Controls | Integrated Handle |
| Maximum Lifting Capacity | 3,306 lb |
| Minimum Air Consumption | 169 cfm |
| Color | Yellow |
| Maximum Operating Temperature | 140 Degrees F |
| Maximum Air Consumption | 169 cfm |
| Minimum Operating Temperature | 14 Degrees F |
| Air Inlet Gender | Female |
| Fully Wound Load Capacity | 3,300 lb |
| Operation | Lifting, Pulling |
| Air Pressure | 90 psi |
| Number of Gear Settings | 2 |
| Body Material | Cast Iron, Steel |
| Includes Brake | Brake Included |
| Max Drum Capacity per Line Dia | 200 ft per 7/16 in |
| Air Inlet Type | BSP |
