McMaster 2310A1 Rigid - Arm Magnetic - Base Indicator Holder Lug and Stem Mount, with Magnetic - Release Switch - KVM Tools Inc.KV2310A1

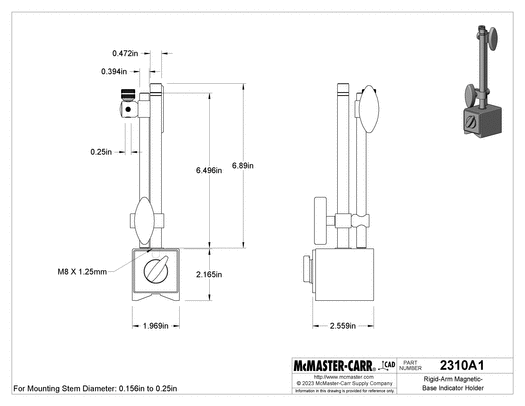

McMaster 2310A1 Rigid-Arm Magnetic-Base Indicator Holder Lug and Stem Mount, with Magnetic-Release Switch

UPC: | Harmonization / Schedule B : 8505.90.4000

Country of Origin: China | Shipping Weight: 4.25 lbs

$99.33 - $99.33
$99.33
$99.33 - $99.33
$99.33

Securely mount indicators to metal surfaces with the magnetic base on these holders. They have a switch that releases the magnet for easy setups.

Holders with a V-grooved base can be mounted on flat or curved metal surfaces.

Mount Type

Lug, Stem
Number of Arms

1
For Mounting Lug Hole Diameter

1/4"
For Mounting Stem Diameter

5/32"-1/4"
Base
Mount Type

Magnetic
Type

V-Grooved
Length

2.559"
Width

1.97"
Height

2.165"
Thread Size

M8
Thread Pitch

1.25 mm
Material

Cast Iron
Magnetic Pull

176 lbs.
Upright Post
Diameter

7/16"
Height

6 7/8"
Material

Steel
Arm
Length

6 1/2"
Diameter

0.375"
Flexibility

Rigid
Features

Magnetic-Release Switch
RoHS

RoHS 3 (2015/863/EU) Compliant
REACH

REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant
DFARS

Specialty Metals COTS-Exempt
Country of Origin

Peoples Republic of China
Schedule B

850590.4000
ECCN

EAR99
