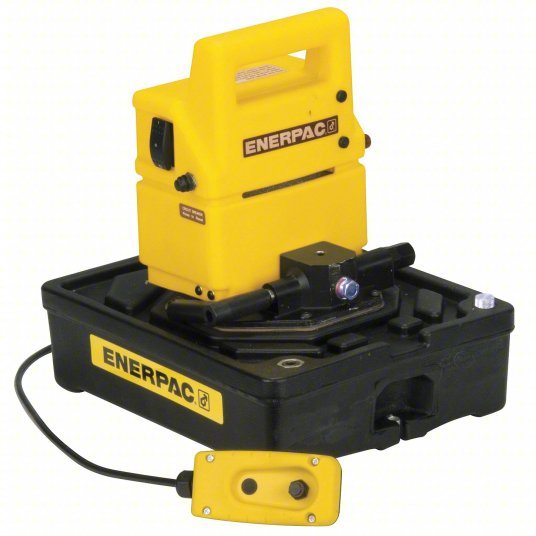

Enerpac PUJ1201B Hydraulic Electric Pump 10,000 psi Max. Op Pressure, 20 cu in/min Max. Flow Rate, 115V AC
UPC: 662005106578 | Harmonization (Schedule B): 8413.50.0080
SKU KV5ZL45
Original price
$4,607.49
-
Original price
$4,607.49
Original price
$4,607.49
$4,607.49
-
$4,607.49
Current price
$4,607.49
Hydraulic Electric Pump, Horsepower - Maximum 1/2 hp, Nameplate Voltage 115V AC, Duty Cycle Intermittent, Operating Pressure - Maximum 10,000 psi, Displacement @ 5000 psi 25 cu in/min, Displacement @ 10,000 PSI 20 cu in/min, Control Valve Type 2-Position, 3-Way, Reservoir Capacity 1 gal, Reservoir Material Polyethylene, Overall Height 14.7 in, Cylinder Compatibility Single Acting, Charger Input Voltage 115V AC, Control Pendant Size 10 ft, Control Pendant Voltage Manual
| Item | Hydraulic Electric Pump |
| Type | High Force |
| Reservoir Capacity (Cu.-In.) | 231 cu in |
| Reservoir Capacity (Gal.) | 1 gal |
| Oil Displacement @ 100 PSI | 200 cu in/min |
| Oil Displacement @ 700 PSI | 70 cu in/min |
| Oil Displacement @ 5000 PSI | 25 cu in/min |
| Oil Displacement @ 10,000 PSI | 20 cu in/min |
| Oil Displacement @ 0-200 PSI | 200 cu in/min |
| HP | 0.5 hp |
| Maximum Pressure | 10,000 psi |
| Motor Type | Universal |
| Reservoir Material | Polyethylene |
| Oil Displacement @ 200-10,000 PSI | 20 cu in/min |
| Control Valve | 3-way, 2-position |
| Control Pendant Voltage | Manual |
| dBA | 85 |
| Amps AC | 9.5 A |
| Voltage | 115V |
| Fluid Port NPT (In.) | 3/8 |
| Application | A Quick and Convenient Power Source for Cylinders and Presses, Intended for Intermittent Use Under 1 Hour |
| Charger Input Voltage | 115V AC |
| Oil Displacement @ 5000 psi | 25 cu in/min |
| Nameplate Voltage | 115V AC |
| Horsepower - Maximum | 1/2 hp |
| Displacement @ 1000 psi | 30 cu in/min |
| Current | 9.5 A |
| Flow Rate - Maximum | 20 cu in/min |
| Reservoir Capacity | 1 gal |
| Frequency | 50 Hz, 60 Hz |
| Media Intake Connection Type | NPTF |
| Control Valve Function | Advance, Hold, Retract |
| Sound Level - Maximum | 85 dBA |
| Duty Cycle | Intermittent |
| Displacement @ 200 psi | 200 cu in/min |
| Displacement @ 700 psi | 70 cu in/min |
| Displacement @ 5000 psi | 25 cu in/min |
| Operating Pressure - Maximum | 10,000 psi |
| Cylinder Compatibility | Single Acting |
| Control Valve Type | 2-Position, 3-Way |
| Displacement @ 10,000 PSI | 20 cu in/min |
| Displacement @ 100 psi | 200 cu in/min |
