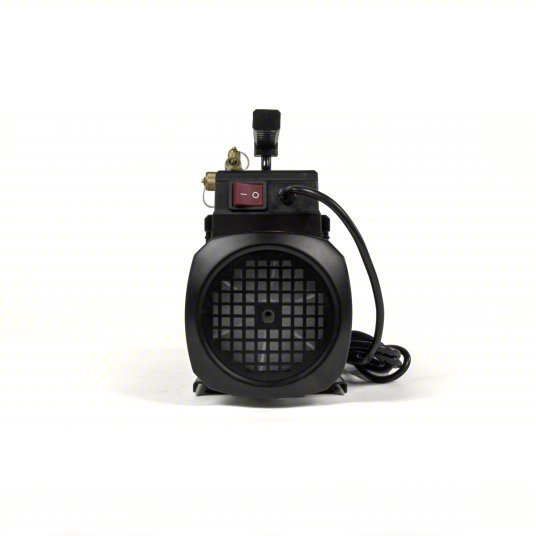

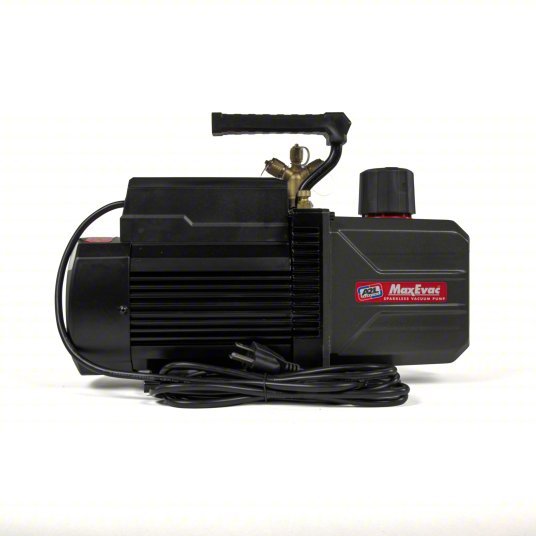

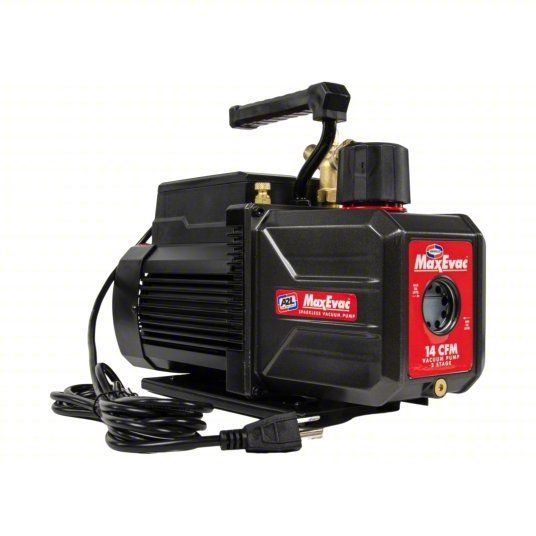

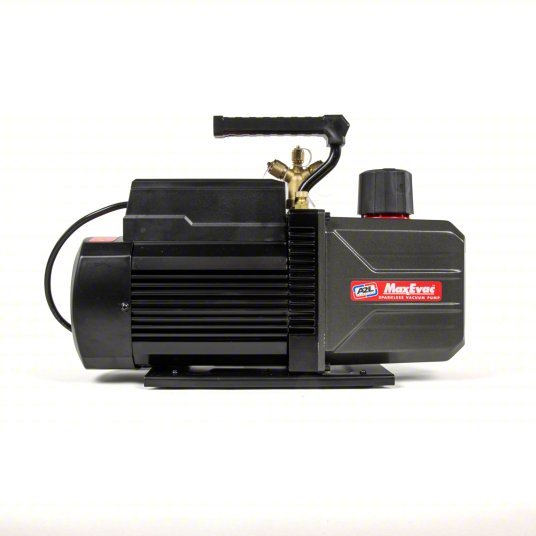

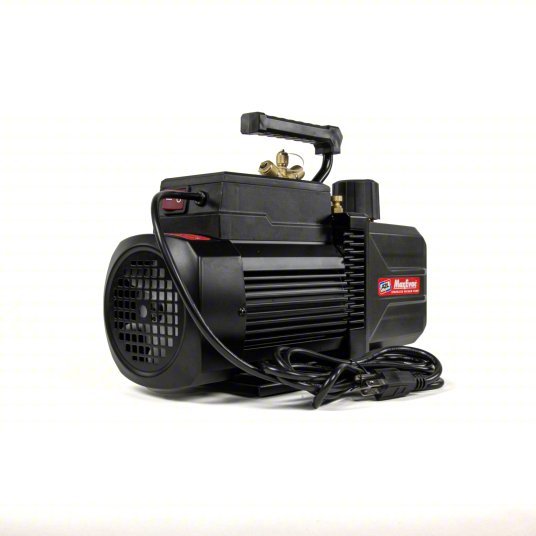

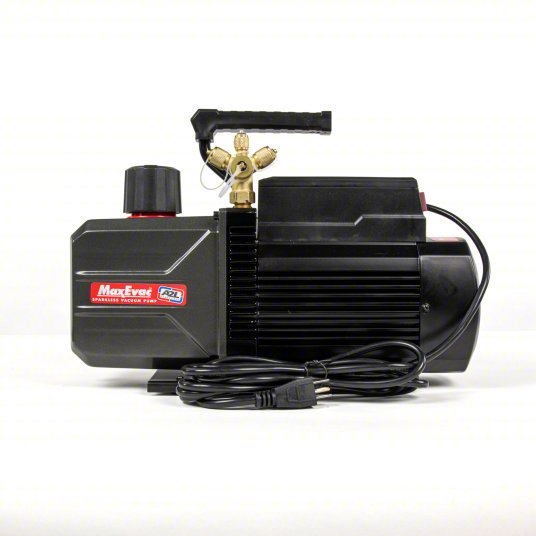

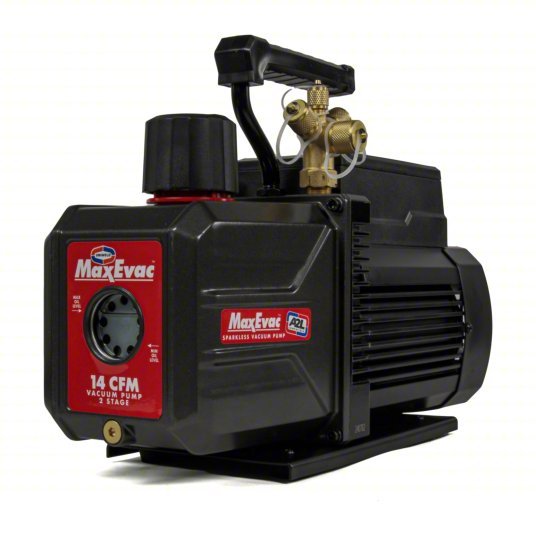

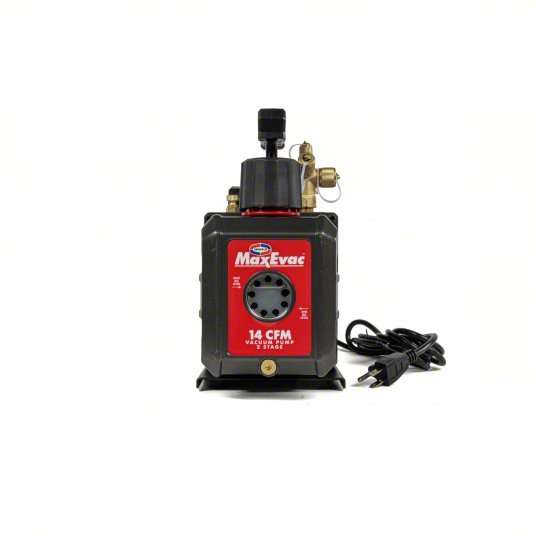

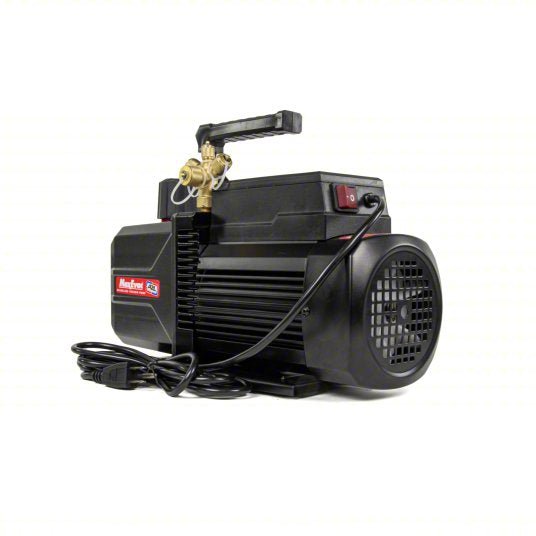

Uniweld MEVP14S MaxEvac Vacuum Pump, A2L Compatible, 14.4 CFM, 1.5 HP 2-Stage, 115V/60 Hz 14.4 cfm, 120V AC

MaxEvac Vacuum Pump, A2L Compatible, 14.4 CFM, 1.5 HP 2-Stage, 115V/60 Hz, 14.4 cfm Displacement, Voltage 120V AC, Overall Length 15.3 in, Overall Height 10.9 in, Overall Width 5.4 in, Weight 34.6 lb, Oil Capacity 16.9 oz, Body Material Steel

Voltage	120V AC
Weight	34.6 lb
Displacement	14.4 cfm
Body Material	Steel
Oil Capacity	16.9 oz
Motor Type	Brushless AC
Inlet 1 Port Connection Gender	Male
Standards	CE Certified
Includes Gas Ballast	Gas Ballast Included
Inlet 1 Port Connection Thread Direction	Right-Hand
Inlet 3 Port Connection Thread Direction	Right-Hand
Includes Oil Mist Filter	Oil Mist Filter Not Included
Power Source	Plug-In
Includes Hoist Clip	Hoist Clip Not Included
For Refrigerant Type	R-11, R-113, R-114, R-115, R-116, R-12, R-123, R-1234YF, R-1234ZE, R-124, R-125, R-1270, R-13, R-134A, R-141B, R-142B, R-143A, R-152A, R-21, R-218, R-22, R-227EA, R-23, R-236FA, R-290, R-32, R-401A, R-401B, R-401C, R-402A, R-402B, R-403A, R-403B, R-404A, R-405A, R-406A, R-407A, R-407B, R-407C, R-407D, R-407E, R-407F, R-408A, R-409A, R-409B, R-41, R-410A, R-410B, R-411A, R-411B, R-412A, R-413A, R-414A, R-414B, R-415A, R-415B, R-416A, R-417A, R-418A, R-419A, R-420A, R-421A, R-421B, R-422A, R-422B, R-422C, R-422D, R-423A, R-424A, R-425A, R-426A, R-427A, R-428A, R-429A, R-430A, R-431A, R-432A, R-433A, R-434A, R-435A, R-436A, R-436B, R-437A, R-438A, R-441A, R-442A, R-443A, R-444A, R-500, R-501, R-502, R-503, R-504, R-507A, R-508A, R-508B, R-509A, R-510A, R-512A, R-600, R-600A, R-601, R-601A, R-717, R-744, R-E170
For Refrigerant Group	CFC, HCFC, HFC
Inlet 3 Port Connection Type	SAE
Number of Inlet Ports	4
Includes Vacuum Gauge	Gauge Not Included
Drain Port Connection Thread Direction	Right-Hand
Drive Type	Direct Drive
Series	MaxEvac
Inlet 2 Port Connection Gender	Male
A2L Compatibility	A2L Compatible
Inlet 2 Port Connection Type	SAE
Inlet 2 Port Connection Thread Direction	Right-Hand
Includes Isolation Valve	Isolation Valve Not Included
Calibration Certificate Type	Not Certified
Includes Sightglass	Sightglass Included
Product Type	Vacuum Pump
Ultimate Vacuum	15 micron
Reservoir Port Connection Thread Direction	Right-Hand
Inlet 3 Port Connection Gender	Male
Horsepower	1 1/2 hp
Plug Configuration	5-15P
Number of Stages	Two-Stage
Inlet 1 Port Connection Type	SAE
Frequency	60 Hz
