Schaefer PVM18C Industrial Misting Fan 18 in Blade Dia, 3 Speeds, 1,400/1,800/2,200 cfm, 115V AC - KVM Tools Inc.KV4ARK4

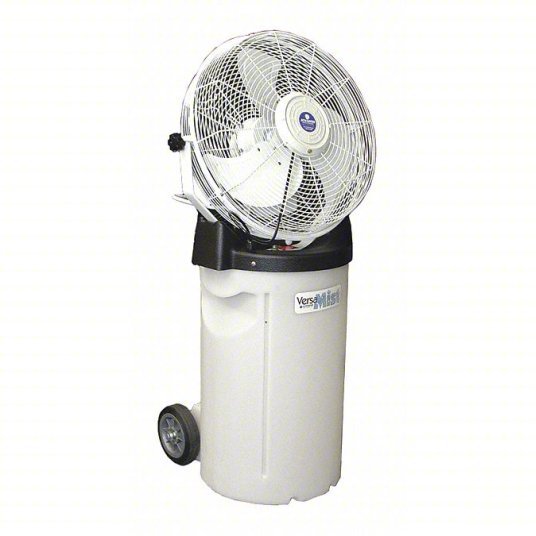

Schaefer PVM18C Industrial Misting Fan 18 in Blade Dia, 3 Speeds, 1,400/1,800/2,200 cfm, 115V AC

UPC: 013135554126 | Harmonization / Schedule B : 8414.51.0090

Country of Origin: | Shipping Weight:

$1,393.76 - $1,393.76
$1,393.76
$1,393.76 - $1,393.76
$1,393.76
Industrial Misting Fan, Blade Dia. 18 in, Mobile, Non-Oscillating, 3 Speeds, Voltage 115V AC, 1 Phase, CFM High 2200, CFM Low 1400, Air Velocity @ 20 Ft. 190/270/310 fpm, Motor HP 1/10 hp, Motor RPM 1000/1400/1570, Operating Amps 1.5/1.3/1, Fan Mounting Location Pedestal, Fan Accessory Style Misting, Sound Level 60/52 dBA, Max. Ambient Temp. 107 Degrees F, Hz 60 Hz, Watts 130, Motor Type Permanent Split Capacitor, Drive Type Direct Drive, Outside Dia. 20 In., Height Adj 53 to 72 in, Width 24 in
Oscillation Non-Oscillating
Air Flow 1400/1800/2200 CFM
Voltage 115VAC
Number of Speeds 3
Motor HP 1/10
Material Steel
Number of Blades 3
Includes 14 gal. Tank, 7 hr. Run Time, 8" Rubber Casters, High Pressure Water Pump, Power Cut Off Tip Switch, (1) Extra Nozzle and (2) Plugs
Phase 1
Hz 60
Oscillating / Non-Oscillating Non-Oscillating
Requires Assembly
Air Velocity @ 20 Ft. 190/270/310
NEMA Plug Configuration 5-15P with GFCI
Air Velocity (FPM) @ 20 Ft. 190/270/310
Fan Style Misting
Assembled No
Bearing Type Sealed Ball
Motor Type Permanent Split Capacitor
Motor Insulation Class A
CFM Medium 1800
Max. Ambient Temp. 107 Degrees F
CFM Low 1400
Watts 130
Application Spot Cooling and People Cooling
Motor RPM 1000/1400/1570
Fan Mounting Location Pedestal
Thermal Protection Auto
Fan Accessory Style Misting
Housing Material Steel
Guard Material Steel
Number of Conductors 3
Mobile/Stationary Mobile
Motor Enclosure Totally Enclosed Air-Over
Oscillating No
Operating Amps 1.5/1.3/1
Standards UL507 Motor and OSHA Guard
Speeds 3
Drive Type Direct
Sound Level 60/52dBA
Blade Material Steel
Full Load Amps 1.45
Wire Guard Finish White Powder Coated
CFM High 2200
Environmental Applications Industrial
Frame Material Steel
