| Switch Action |
Open/Close on Rise |
| Control Type |
Exposed Dial |
| Switch Type |
SPDT |
| Voltage |
120 to 277V AC |
| Sensor Type |
Hydraulic Capillary Bulb (Copper) |
| Differential |
3 Degrees to 10 Degrees F |
| Number of Relay Outputs |
2 |
| Full Load Amps @ 120VAC |
15 A |
| Thermostat Control Range |
0 Degrees to 100 Degrees F |
| Full Load Amps @ 240VAC |
5.1 A |
| Enclosure Type |
Impact Resistant Norel |
| Standards |
CSA Certified, UL Listed |
| Color |
Gray |
| Inductive Amps @ 240V |
5 A |
| Thermostat Heating/Cooling |
Heating/Cooling |
| Number of Switches |
2 |
| Contact Rating Resistive @ 120V |
8 A |
| Locked Rotor Amps @ 240V |
30.6 A |
| Thermostat Voltage |
120 to 277V AC |
| Inductive Amps @ 120V |
8 A |
| Thermostat Switch Type |
SPDT |
| Thermostat Item |

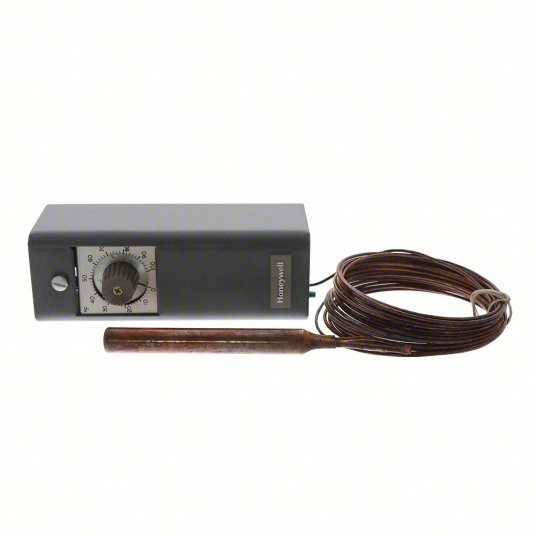

Line Voltage Mechanical Thermostat |
| Locked Rotor Amps @ 120V |
48 A |
| Thermostat Programmable |
No |
| Remote Sensing Bulb Included |
Yes |
| Application |
Heat and Cool |
| Stages |
1H/1C |
| Thermostat Type |
Indoor Single-Stage Controls |
| Temperature Differential |
3 Degrees to 10 Degrees F |
| Maximum Control Temperature |
100 Degrees F |
| Full Load Amps @ 120V AC |
8 A |
| Compatible System Type |
Boilers, Ducts, Pipes, Tanks |
| Minimum Control Temperature |
0 Degrees F |
| Number of Poles |
1 |
| Electrical Connection Type |
Hardwired |
| Changeover Type |
Manual |
| Sensor Location |
Remote |
| Switch Type/Action |
SPDT, Open/Close on Rise |
| Full Load Amps @ 240V AC |
5.1 A |
| Number of Heating Stages |
1 |
| Pilot Duty Rating |
125 VA @ 120 to 277V AC |
| Operating Temperature Range |
55 Degrees to 125 Degrees F |
| Number of Cooling Stages |
1 |
| Enclosure Material |
Steel |
| Minimum Operating Temperature |
55 Degrees F |
| Defrost Termination |
0 Degrees to 100 Degrees F |
| Temperature Scale |
Fahrenheit/Celsius |
| Mounting Direction |
Horizontal, Vertical |
| Temperature Control Range |
0 Degrees to 100 Degrees F |
| Frequency |
50 Hz, 60 Hz |
| Contact Rating |
120 to 277V AC |
| Enclosure Color |
Gray |
| Maximum Operating Temperature |
125 Degrees F |
| Differential Type |
Adjustable |
