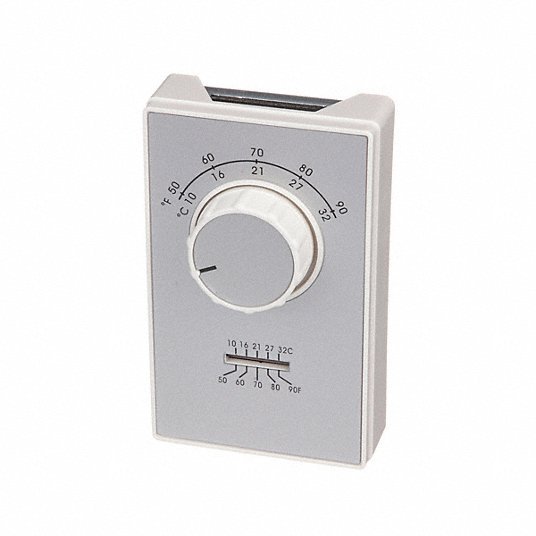

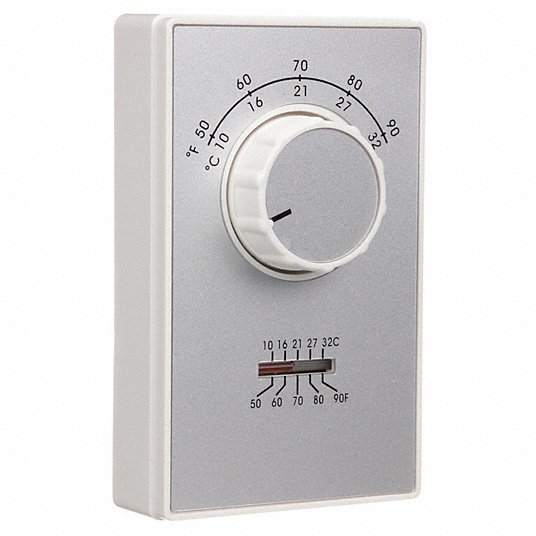

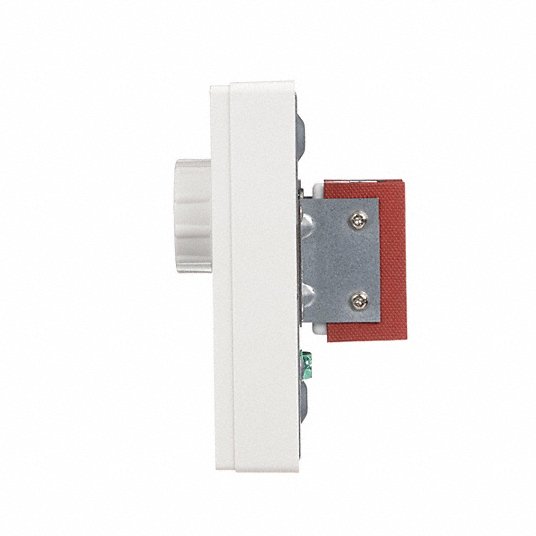

Columbus ETD9STGS Line Volt Mechanical Tstat, Open/Close on Rise, wall, SPDT

UPC: 686334538916 | Harmonization / Schedule B : 9032.10.0030

Country of Origin: | Shipping Weight:

$27.20 - $27.20
$27.20
$27.20 - $27.20
$27.20

Line Volt Mechanical Tstat, Thermostat Switch Type SPDT, Thermostat Control Range 50 Degrees to 90 Degrees F, Thermostat Voltage 120 to 277V AC, Full Load Amps @ 120VAC 22 A, Full Load Amps @ 240VAC 22 A, Thermostat Programmable No, Remote Sensing Capability No, Thermostat Heating/Cooling Heating/Cooling, Remote Sensing Bulb Included No, Switch Action Open/Close on Rise, Number of Switches 1, Differential 2 to 4 Degrees F, Height 4 3/4 in, Width 2 3/4 in, Depth 1 1/2 in

Switch Action Open/Close on Rise
Sensor Type Bi-Metallic Spring
Differential 2 to 4 Degrees F
Display Type Analog
Thermostat Control Range 50 Degrees to 90 Degrees F
Mounting Location wall
Switch Type SPDT
Color White/Metallic Plate
Contact Rating Resistive @ 240V 22 A
Thermostat Heating/Cooling Heating/Cooling
Thermostat Switch Type SPDT
Standards UL and CSA
Thermostat Voltage 120 to 277V AC
Thermostat Programmable No
Mounting Type Vertical
Contact Rating Resistive @ 277V 22 A
Inductive Amps @ 120V 13.8 A
Locked Rotor Amps @ 120V 82.8 A
Number of Switches 1
Remote Sensing Capability No
Thermostat Item Line Voltage Mechanical Thermostat
Contact Rating Resistive @ 120V 22 A
Full Load Amps @ 120VAC 22 A
Includes Thermometer
Item Line Volt Mechanical Tstat
Full Load Amps @ 240VAC 22 A
Remote Sensing Bulb Included No
Locked Rotor Amps @ 240V 60 A
Inductive Amps @ 240V 10 A
For Use With Blowers, Furnace Fans, Baseboard and Ceiling Heaters
Display Analog
Voltage Range 120 to 277VAC
Type Heating/Cooling
Compatible System Type Electric Cooling, Electric Heating
Temperature Control Range 50 Degrees to 90 Degrees F
Number of Cooling Stages 1
Includes Positive Off No
System Settings Cool-Heat-Off
Housing Color White
Temperature Differential 2 Degrees to 4 Degrees F
Number of Heating Stages 1
Mounting Direction Vertical
Minimum Control Temperature 50 Degrees F
Stages 1H/1C
Differential Type Fixed
Changeover Type Manual
Switch Type/Action SPDT, Open/Close on Rise
Temperature Readout Yes
Housing Material Plastic
Temperature Scale Fahrenheit/Celsius
Maximum Control Temperature 90 Degrees F
Fan Settings No Fan Setting
Package Quantity 1
