Tapcon 3153407 Concrete Anchor Screw 1 1/4 in Overall Lg, 1/4 in Dia, Steel, Climaseal, Hex, Steel, 100 PK - KVM Tools Inc.KV4AK86

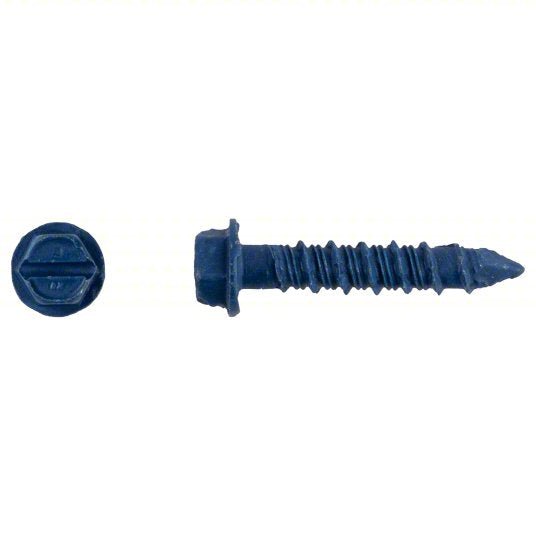

Tapcon 3153407 Concrete Anchor Screw 1 1/4 in Overall Lg, 1/4 in Dia, Steel, Climaseal, Hex, Steel, 100 PK

UPC: 092097140202 | Harmonization / Schedule B : 7318.15.8069

Country of Origin: | Shipping Weight:

$43.02 - $43.02
$43.02
$43.02 - $43.02
$43.02
Concrete Anchor Screw, Anchor Diameter 1/4 in, Overall Length 1 1/4 in, Head Type Hex, Head Width 0.31 in, Head Diameter Not Applicable, Drive Type External Hex, Material Steel, Finish Climaseal, Material Grade/Class Low, Removable Removable, Compatible Material Block, Brick, Concrete, Drill Bit Size 3/16 in, Screw Anchor Type Concrete Screw Anchor, System of Measurement Inch, Maximum Material Thickness 1/4 in, Maximum Ultimate Shear Strength 1,440 lb, Maximum Ultimate Tension Strength 950 lb
Compatible Material Concrete; Wood
Sub-Brand Tapcon
Material Steel
Finish Blue Climaseal
Head Type Hex
Drive Type External Hex
Material Quality Standards ASTM B117
Ultimate Shear Strength (4,000 psi Concrete) 1,360 lb
Ultimate Tension Strength (4,000 psi Concrete) 800 lb
Type Masonry
ICC Approved for Un-Cracked Concrete Yes
Material Grade Low Carbon Steel
ICC Approved for Cracked Concrete No
Seismic Approved No
Edge Distance 1 1/4 in
Removable Removable
Series Tapcon
Screw Anchor Type Concrete Screw Anchor
Maximum Material Thickness 1/4 in
Maximum Ultimate Tension Strength 950 lb
Manufacturer Location Made in USA
Minimum Ultimate Shear Strength 900 lb
Industry Standards ICC-ESR-1671, ICC-ESR-2202
Maximum Ultimate Shear Strength 1,440 lb
Minimum Ultimate Tension Strength 750 lb
Material Grade/Class Low
System of Measurement Inch
Tip Type Self-Threading
