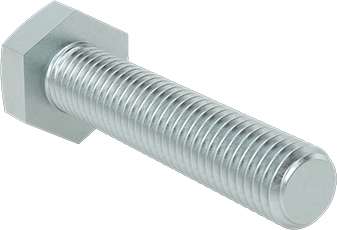

McMaster 91280A012 Medium-Strength Class 8.8 Steel Hex Head Screw PK5

Name: McMaster 91280A012 Medium-Strength Class 8.8 Steel Hex Head Screw PK5
Brand: McMaster-Carr
SKU: KV91280A012
Price: 36.61 USD
Availability: InStock

UPC: | Harmonization / Schedule B : 7318.15.9000

Country of Origin: China | Shipping Weight: 2.888 lbs

$36.61 - $36.61

$36.61

$36.61 - $36.61

$36.61

Quantity

These Class 8.8 steel screws are suitable for fastening most machinery and equipment. Dimensions meet ISO (formerly DIN) or DIN specifications. Length is measured from under the head.

Zinc-plated steel screws resist corrosion in wet environments.

Match the thread spacing of mating components.

Coarse threads are the industry standard; choose these screws if you don’t know the pitch.

Screws that meet SAE J1199 comply with specifications for material standards.

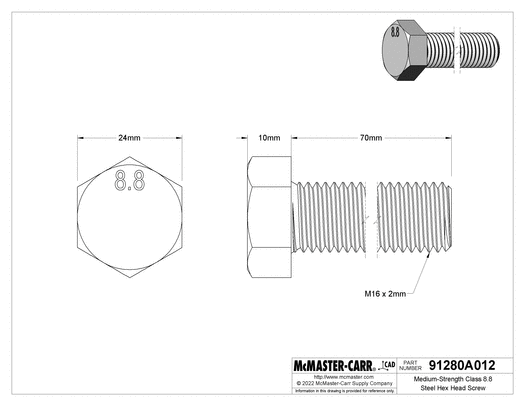

Head Type	Hex
Drive Style	External Hex
System of Measurement	Metric
Thread Direction	Right Hand
Thread Size	M16
Thread Pitch	2 mm
Thread Type	Metric
Thread Fit	Class 6h
Length	70 mm
Threading	Fully Threaded
Thread Spacing	Coarse
Head
Width	24 mm
Height	10 mm
Fastener Strength Grade/Class	Class 8.8
Material	Steel
Finish	Zinc Plated
Tensile Strength	110,000 psi
Hardness	Rockwell C21
Specifications Met	ISO 4017, DIN 933, SAE J1199, ISO 898
RoHS	RoHS 3 (2015/863/EU) Compliant
REACH	REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant
DFARS	Not Specialty Metals Compliant
Country of Origin	Peoples Republic of China
Schedule B	731815.9000
ECCN	EAR99
