McMaster 3014T954 Machinery Eye Bolt With Shoulder 3/8" - 16 Thread Size, 3/4" Thread Length - KVM Tools Inc.KV3014T954

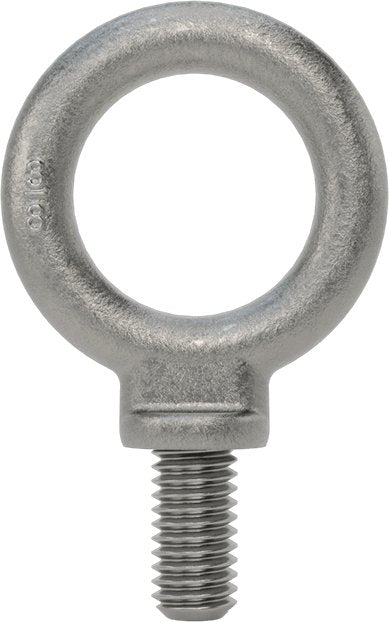

McMaster 3014T954 Machinery Eye Bolt With Shoulder 3/8"-16 Thread Size, 3/4" Thread Length

UPC: | Harmonization / Schedule B : 7318.15.2000

Country of Origin: | Shipping Weight:

$5.81 - $5.81
$5.81
$5.81 - $5.81
$5.81

Eyebolts with shoulder can be used for angular lifting up to 45°, but the capacities will be significantly reduced. For angular lifting, we recommend Hoist Rings.

Warning: Never use to lift people or items over people.

Application

For Lifting
Thread


Size

3/8"-16
Length

3/4"
Shank Length

3/4"
Eye Diameter

1 1/32"
Vertical Capacity

1,300 lbs.
Eye Style

Closed
Eye Shape

Round
Material

Steel
Threading

Fully Threaded
Movement

Rigid
Specifications Met

ASTM A489
Overall Length

2 3/4"
Body Style

With Shoulder
RoHS

Not Compliant
REACH

REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant
DFARS

Specialty Metals COTS-Exempt
Country of Origin

United States
USMCA Qualifying

No
Schedule B

731815.2000
ECCN

EAR99
