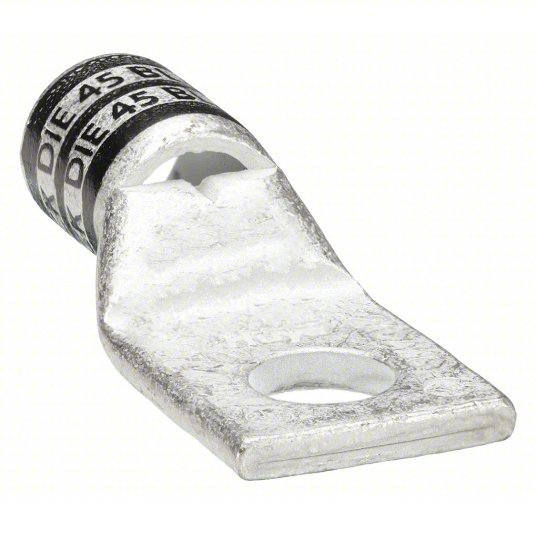

KVM Tools KV24C371 One-Hole Lug Compression Connector 2/0 AWG Max Wire Size, 1/2 in Stud Size

UPC: 190735432174 | Harmonization / Schedule B : 8535.90.8020

Country of Origin: China | Shipping Weight: 0.005 lbs

Original price $6.50 - Original price $6.50
Original price
$6.50
$6.50 - $6.50
Current price $6.50
One-Hole Lug Compression Connector, Barrel Size Short, Color Code Black, Die Code 45, Tongue Angle Straight, Tongue Width 0.83 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 2/0 AWG, For Stranded Copper Wire Size - Maximum 2/0 AWG, Inspection Hole Yes, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless, Standards CSA Certified, UL Listed, Number of Holes 1
Connector Type Straight Barrel
Material Copper
Color Code Black
Hole Center to End 0.5 in
UPC 190735432174
Tongue Style Standard
Standards CSA Certified, UL Listed
Die Code 45
Peep Hole Yes
Contact Finish Tin
For Wire Type Stranded
Seam Style Seamless
Barrel Style Chamfered
Special Features Corrosion Resistant, High-Conductivity Construction
Termination Style Crimp
Tongue Angle Straight
Inspection Hole Yes
Maximum Operating Temperature 300 Degrees F
Maximum Voltage 600 V AC
For Conductor Material Copper
RoHS Compliant Yes
Current 265 A
