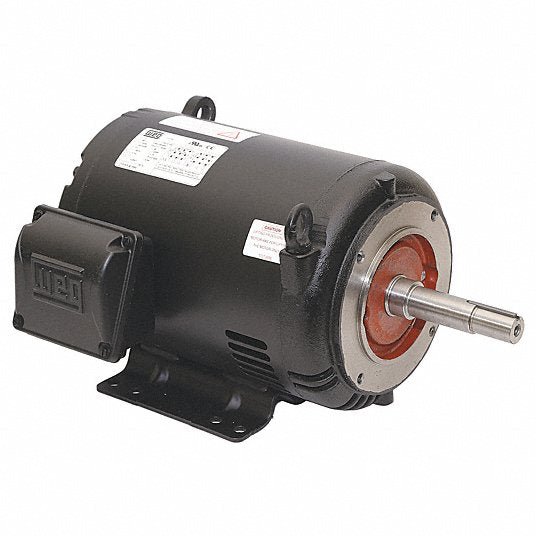

WEG 00318OT3E182JM-S Pump Motor, 3 HP, 182/4JM, 208-230/460V
UPC: | Harmonization (Schedule B): 8501.52.4000
SKU KV33HN39
Original price
$812.99
-
Original price
$812.99
Original price
$812.99
$812.99
-
$812.99
Current price
$812.99
Close-Coupled Pump Motor, Body Dia. 8.5 in, Bolt Circle Dia. 5 7/8 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 182/4JM, Hz 60, Full Load Amps 3.3-3.0/1.5.0, Height 8 9/16 in, HP 3, HP @ 50Hz 3, Ins. Class F, Inverter Rated Yes, Inverter Rating 1000:1, Length Less Shaft 12 3/8 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
| Item | Close-Coupled Pump Motor |
| Motor Design | 3-Phase |
| HP | 3 |
| RPM Range | 1,701-1,800 |
| Nameplate RPM | 1,760 |
| Voltage | 208-230/460V AC |
| Frame | 182/4JM |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.15 |
| Standards | CSA (LR38324), CSA (LR50962), UL (E104590), UL (E125311) |
| Motor Shaft Design | JM Threaded |
| CC Number | CC029A |
| Ins. Class | F |
| Motor Frame Material | Steel |
| Nominal Efficiency | 89.5 % |
| Motor Application | Pump |
| Frame Material | Rolled steel |
| Duty | Continuous |
| Phase | Three |
| Motor Sub Application | Close-Coupled Pump |
| Motor Bearings | Ball |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Green Environmental Attribute | Does not Contain Phthalates, Formaldehyde, Toxic Metals, Aromatic and Halogenated Compounds, Butoxyethanol, 2-Methoxyethanl, Isophorone, Methyl Ethyl Ketone, Methyl Isobutyl Ketone, Acrolein, Acrylonitrile |
| Inverter Rated | Yes |
| Hz | 60 |
| Motor Enclosure Design | Open Dripproof |
| Motor Thermal Protection | None |
| Motor Efficiency Group | NEMA Premium Efficient |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC |
| Full Load Amps | 3.3-3.0/1.5.0 |
| NEMA Design | B |
| Shaft Material | Carbon Steel |
| Duty Cycle | Continuous |
| Weight | 75 lb |
| HP @ 50Hz | 3 |
| Motor Mounting Position | Horizontal |
| Inverter Rating | 1000:1 |
| Usable @ 208V | Yes |
| Conduit Box Position | F1 |
| Service Factor @ 50Hz | 1.15 |
| RPM @ 50Hz | 1,465 |
| No. of Speeds | 1 |
| Voltage @ 50Hz | 190/380, 220/415 |
| Conduit Box Location | Exterior |
| Usable @ 200V | Yes |
| Regreasable Bearings | Regreasable Bearings |
| Shaft Type | JM Threaded |
| Package Quantity | 1 |
